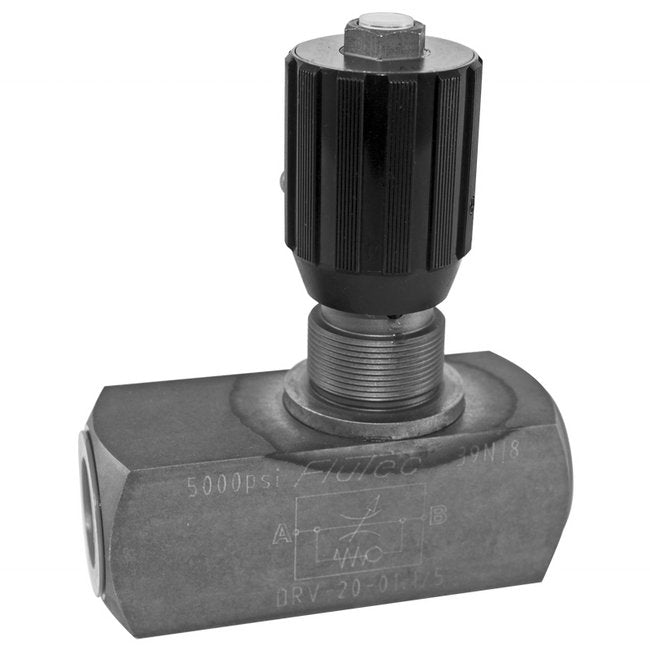

The Industrial DRV-06 NPTF Flow Control Valve with Check is designed for precise and repeatable control of hydraulic fluids at up to 5000 PSI. Featuring a micrometer-style adjustment knob with a color-coded flow indicator, this valve allows accurate and easy flow adjustment. With a carbon steel housing, NPTF threaded connections, and zinc-plated finish, it meets industry standards for reliable performance. Its unique safety spindle design, panel mounting provision, and compatibility with FPM O-Rings make it a versatile choice for inline hydraulic applications.
Product Specifications

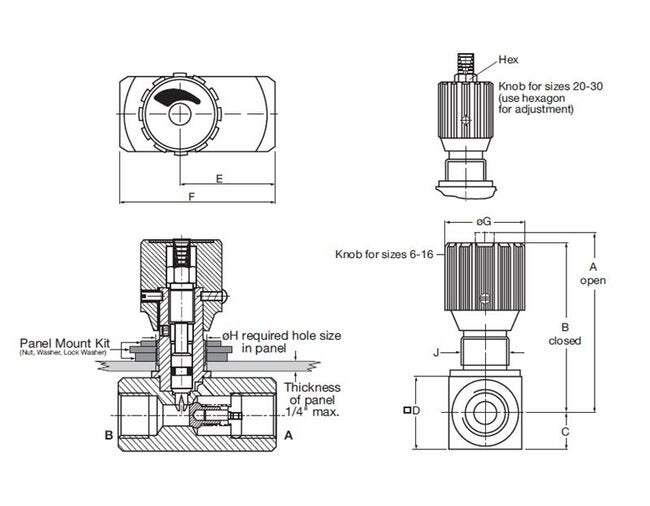

Dimensions Diameter G
0.94 in | 24 mm
Dimensions Diameter H
0.51 in | 13 mm
Dimensions Dimension A
2.17 in | 55 mm
Dimensions Dimension B
1.97 in | 50 mm
Dimensions Dimension C
0.31 in | 8 mm
Dimensions Dimension D
0.63 in | 16 mm
Dimensions Dimension E
1.02 in | 26 mm
Dimensions Dimension F
1.77 in | 45 mm
Dimensions Dimension J
Pg 7 Thread
Features 0
8 sizes, 1/8" - 1-1/2"NPTF or SAE O-Ring threaded connections, or manifold mountingFPM (Fluoroelastomer) O-Rings (standard)Color coded spindle for accurate flow controlProvision for panel mountingUnique safety spindle design
Note 0

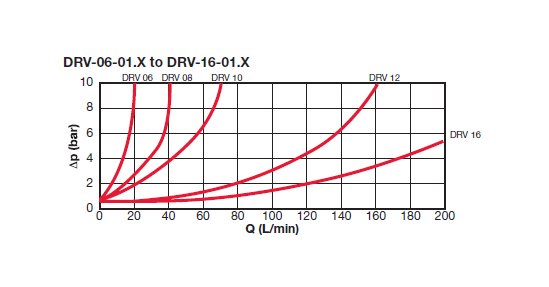

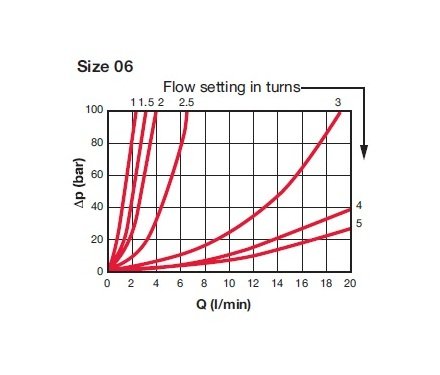

Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºCDimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications 0
Panel Mounting Kit
Specifications Bun
EA
Specifications Cracking Pressure
7 psi
Specifications Division
ACCESSORIES
Specifications End Size
1/8 in.
Specifications End Type
NPTF
Specifications Finish
Zinc Plated
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
International Organization for Standardization (ISO)
Specifications Model Code Description
DRV-06-01.X/5-S
Specifications Mounting Type
In-Line Mounting
Specifications Nominal Size
06
Specifications Operating Pressure
345 bar | 5000 psi
Specifications Port Configuration
NPTF (ANSI B1.20.3)
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Second End Size
1/8 in.
Specifications Second End Type
NPTF
Specifications Temperature At Full Pressure Max
212 ºF
Specifications Temperature At Full Pressure Min
-4 ºF
Specifications Type
Flow Control Valve
Specifications Valve Operator
Knob
Specifications Weight
0.13 kg | 0.29 lb
