Experience superior torque capacity with our Dual Flange CB Elements in sizes 12 to 45. Boltable design for double the torque efficiency. With a torque rating of 242,000 lb·in and maximum speed of 950 rpm, these elements ensure reliable performance. Their durable construction, lightweight design, and friction area of 916 in² make them ideal for heavy-duty applications. Meet your clutch and brake needs efficiently with these top-tier elements.
Product Specifications
Note 0
Refers to basic part number only. When ordering, the number of air inlets and type of connection must be specified.

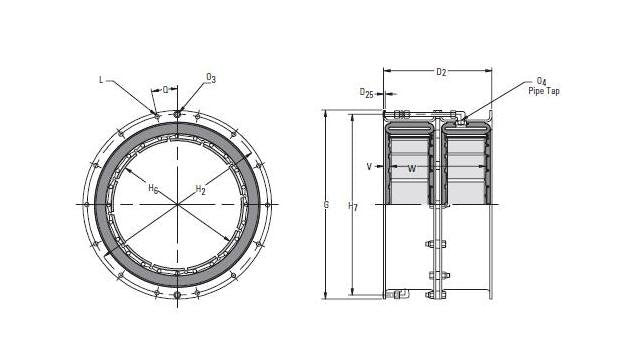

Specifications Air Inlet Thread
1/2-14
Specifications Air Tube Cavity
580 in³ | 9.51 dm³
Specifications Angle Q
11.250 º
Specifications Bolt Hole Size L
0.625 in | 16 mm
Specifications Centrifugal Loss Constant Cs
2.76 E-06 bar/rpm2 | 40 E-06 psi/rpm2
Specifications Dimension D2
14.44 in | 367 mm
Specifications Dimension D25
0.25 in | 6 mm
Specifications Dimension G
38.000 in | 965.2 mm
Specifications Dimension H2
36.750 in | 933.5 mm
Specifications Dimension H6
30.19 in | 767 mm
Specifications Dimension H7
36.50 in | 927 mm
Specifications Dimension O3
0.50 in | 13 mm
Specifications Dimension V
0.84 in | 21 mm
Specifications Friction Area
916 in² | 5908 cm²
Specifications Friction Shoe Width W
12.69 in | 322 mm
Specifications Inertia
621 lb·ft² | 26.08 kg·m²
Specifications Maximum Speed
950 rpm
Specifications Minimum Drum Diameter
29.81 in | 757 mm
Specifications New Friction Lining Thickness
0.33 in | 8 mm
Specifications Number Of Friction Shoes
36
Specifications Number Of Mounting Holes
16
Specifications Size
30CB525
Specifications Torque Rating 75 Psi55 Bar
242000 lb·in | 27300 Nm
Specifications Weight
302 lb | 137 kg
Specifications Worn Friction Lining Thickness
0.06 in | 2 mm
