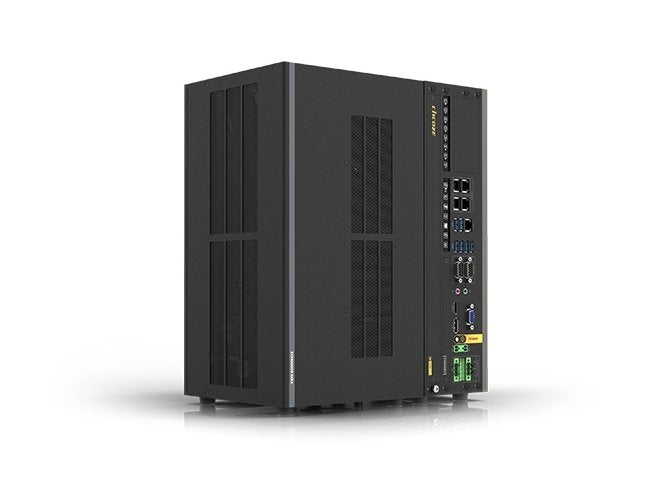

The GP-3100-R10 is a robust industrial GPU computer tailored for demanding AI and machine vision applications. Powered by advanced Intel processors and supporting up to two 250W full-length GPU cards, this system delivers exceptional computing power. With innovative cooling solutions, modular design for expandability, and compliance with stringent industry certifications, the GP-3100-R10 is the ideal choice for organizations requiring reliable and efficient Edge AI solutions.
Product Specifications
Additional Information Additional Information
Ultimate CPU + GPU performanceEquipped with a 14th generation Intel® Core⢠(Raptor Lake-S Refresh) processor, the GP-3100 is capable of three times the computing performance of its predecessor. The GP-3100 supports up to two 250W high-end GPU cards and 5600MHz DDR5 memory with ECC for a complete AI computing solution.Scalable and upgradeable GPU expansion boxThe dual-patented GPU expansion box (GEB) supports up to two 328mm high-end full-length GPU cards and includes multiple built-in PCIe slots for flexible use with high-speed I/O or frame grabber cards. The patented adjustable 3D GPU Card Mounting Bracket is designed for high-vibration environments and can firmly lock all GPU cards. For flexible future upgrades, the GEB can be replaced to add a higher-end GPU card or an expansion card.Patent No.: I779496, I763318Comprehensive cooling designTo solve the power consumption and thermal challenges, the GP-3100's mechanical structure and isolated external smart fan kits on both sides of the chassis effectively dissipate heat under full workloads in extreme conditions.Patent No.: I778522Rich modular design and expandabilityAI applications need high-speed transmission and high-capacity storage, so the GP-3100 has 4x 2.5GbE LAN, 6x USB 3.2, 4x front-accessible 2.5" HDD/SSD, and NVMe SSD. Rich scalability capabilities include exclusive modular technology (CMI and CFM) and an M.2 slot that supports CAN bus and other modules to meet various application needs.International standards and certificationsRugged design passes or complies with multiple industrial standards and certifications, including MIL-STD-810H US military shock resistance, E-mark, and EN 50155 (EN 50121-3-2 only), to ensure high reliability in various application environments.
Audio Audio Codec
Realtek® ALC888, High Definition Audio
Audio Line Out
1x Line-out, Phone Jack 3.5mm
Audio Mic In
1x Mic-in, Phone Jack 3.5mm
Environment Electromagnetic Compatibility Emc
CE, UKCA, FCC, ICES-003 Class AEN 50155 (EN 50121-3-2 Only)E-mark (Pending)
Environment Electromagnetic Interference Emi
CISPR 32 Conducted & Radiated: Class AEN/BS EN 50121-3-2 Conducted & Radiated: Class AEN/BS EN IEC 61000-3-2 Harmonic current emissions: Class AEN/BS EN61000-3-3 Voltage fluctuations & flickerFCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
Environment Environmental Management System Ems
EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kVEN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/mEN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kVEN/IEC 61000-4-5 Surges: AC Power: 2 kVEN/IEC 61000-4-6 CS: 10VEN/IEC 61000-4-8 PFMF: 50 Hz, 1A/mEN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
Environment Non Condensing Relative Humidity Rh At 70 Degree Cel
95 %
Environment Note For Operating Temperature
PassMark Burn-In Test: 100% CPU, 2D/3D Graphics (without thermal throttling)With extended temperature peripherals; Ambient with air flowAccording to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Environment Operating Temperature At 35 Watt W Thermal Design Po
-40 to 70 ºC
Environment Operating Temperature At 65 Watt W Thermal Design Po
-40 to 60 ºC
Environment Safety
European Norm (EN 45545-2)
Environment Shock
MIL-STD-810H
Environment Storage Temperature
-40 to 70 ºC
Environment Vibration
MIL-STD-810H
Expansion Combined Multiple Interface Cmi Inputoutput Io
1x High Speed CMI Interface for optional CMI Module Expansion1x Low Speed CMI Interface for optional CMI Module Expansion
Expansion Control Function Module Cfm Interface
1x CFM IGN Interface for optional CFM-IGN Module Expansion1x CFM PoE Interface for optional CFM-PoE Module Expansion
Expansion M2 Key B Socket
1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x2 / USB3.2 Gen1 / USB2.0 / SATA), Support 5G/Storage/Add-on Card Expansion1x M.2 Key B Type 2280 Socket (PCIe Gen 3x1), Support Add-on Card Expansion
Expansion M2 Key E Socket
1x M.2 Key E Type 2230 Socket (PCIe Gen 3x2), Support Wireless/Intel® CNVi Module Expansion
Expansion Peripheral Component Interconnect Express Pcie
Optional GPU Expansion Box1x PCIe x4 + 1x PCIe x162x PCIe x16 (8Lanes) + 1x PCIe x1 + 1x PCIe x4
Expansion Subscriber Identity Module Sim Socket
2 x Front Accessible SIM Socket
Features Features

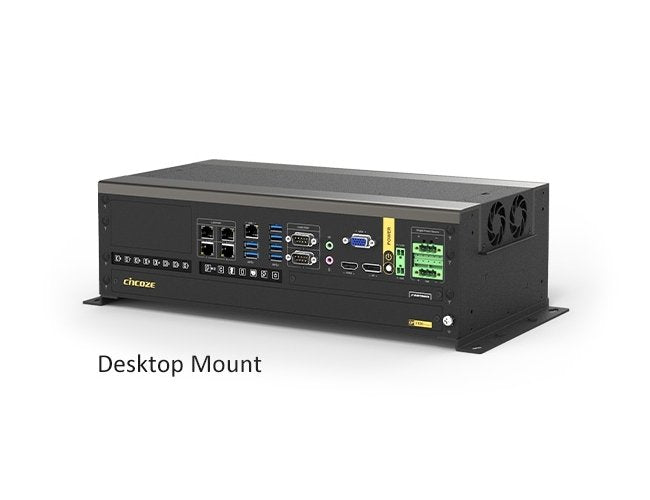

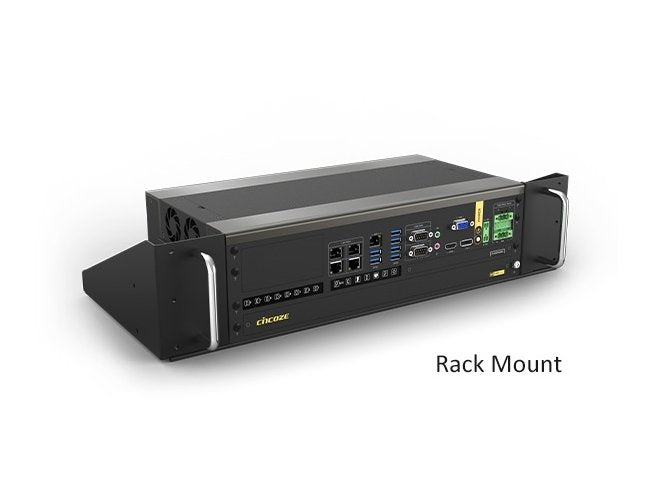

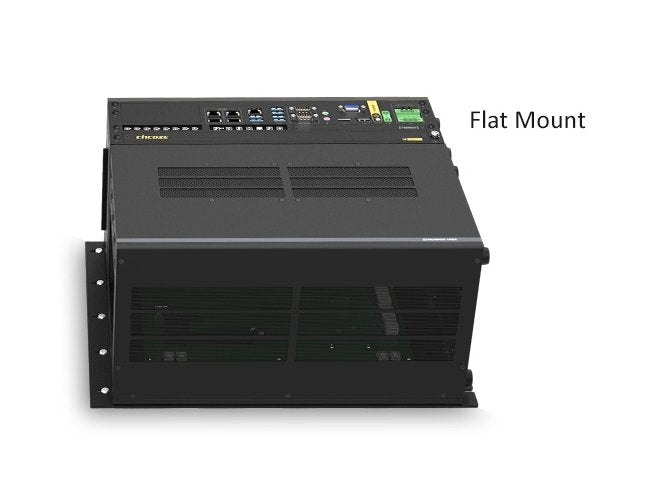

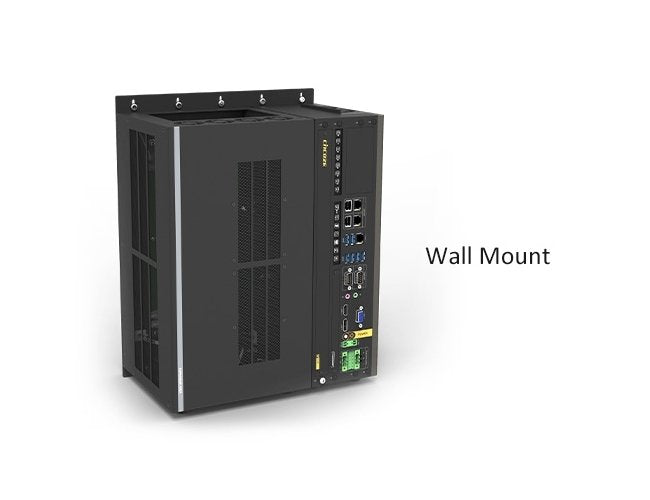

Intel® 14/13/12th Gen Core⢠i9/i7/i5/i3 Processors (max 65 W TDP)2 x DDR5 SO-DIMM Sockets, Supports ECC/non ECC type Memory, Up to 4800MHZ, 64GB4x 2.5GbE LAN and optional 2x 10GbE LAN1x M.2 Key E Type 2230 Socket for Wireless/Intel® CNVi Module Expansion1x M.2 Key B Type 3052/3042 Socket for 5G/Storage/Add-on Card Expansion1x M.2 Key B Type 2280 Socket for Add-on Card Expansion4 x 2.5" Hot Swappable SATA III HDD/SSD Bays (Max Height 15 mm) , 1x M.2 key M for NVMe SSDOptional CMI & CFM Modules for I/O Expansion & Power Ignition Sensing FunctionVersatile Mounting Methods (Tower Stand / Desktop / 19"Rack / Flat / Wall Mount)Wide Operating Temperature -40ºC to 70ºC
Graphics Displayport Dp
1x DisplayPort Connector (4096 x 2304at 60Hz)Verified maximum DP resolution: 3840x2160 at 60Hz
Graphics Graphics Engine
Integrated Intel® UHD Graphics 770: Core⢠i9/i7/i5Integrated Intel® UHD Graphics 730: Core⢠i3Integrated Intel® UHD Graphics 710: Pentium®/Celeron®
Graphics High Definition Multimedia Interface Hdmi
1x HDMI Connector (3840 x 2160 at 30Hz)Verified maximum resolution: 3840x2160 at 30Hz
Graphics Maximum Display Output
Supports Triple Independent Display
Graphics Video Graphics Array Vga
1x VGA Connector (1920 x 1200 at 60Hz)
Other Function Power Ignition Sensing
Support Power Ignition Sensing Function with Delay Time Management and Selectable 12V/24V (With Optional CFM Module)
Physical Depth
195 mm
Physical Height
370 mm
Physical Width
105 mm
Power Connector
2x 3-pin Terminal Block, Each Terminal Block Current Limitation is 15ADual power connect must be used at the same time due to 15A current limitation at each power connector.
Power Maximum Power Consumption
35W CPU: 201.05W65W CPU: 306.48WTest conducted with CPU, 1x RAM, and 1x storage100% load during burn-in testing.
Power Power Button
1x ATX Power On/Off Button
Power Power Input Voltage
9 - 48VDC, Single Power Input
Power Power Mode Switch
1x AT/ATX Mode Switch
Power Remote Power Light Emitting Diode Led
1x Remote Power LED, 2-Pin Terminal Block
Power Remote Power Onoff
1x Remote Power On/Off, 2-pin Terminal Block
Reliability And Protection Over Voltage Protection
Protection Range: 51~58VProtection Type: shut down operating voltage, re-power on at the present level to recover
Reliability And Protection Reverse Power Input
Yes
