Industrial Female Elbow Connector - 1in Tube OD, 3/4in NPT Thread
Industrial Female Elbow Connector - 1in Tube OD, 3/4in NPT Thread
SKU:SFE-cd6bd8
Enhance your piping system with precision - SFEI Series Female Elbow Connector for secure and efficient valve connections.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Industrial Female Elbow Connector - 1in Tube OD, 3/4in NPT Thread
$29.99
Quantity: 1
Claim Your Seller Account
Industrial Female Elbow Connector - 1in Tube OD, 3/4in NPT Thread
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

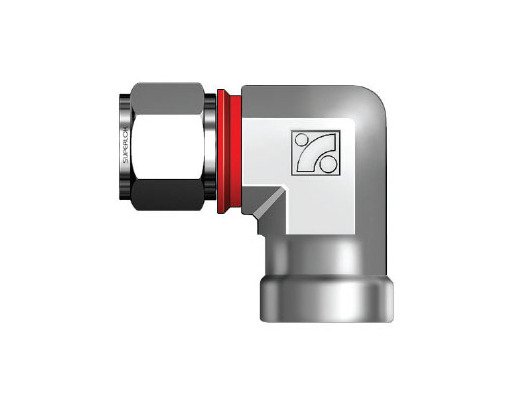

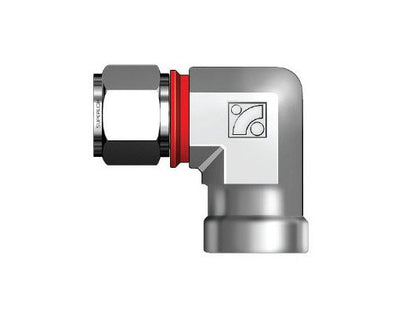

Upgrade your piping system with the SFEI Series Industrial Female Elbow Connector. This connector is designed to seamlessly join fractional tubes to male NPT threads. Crafted from high-quality materials including Alloy 625, 825, and more, this female elbow ensures durable performance in demanding environments. The patented i-Fitting® design enhances safety, productivity, and cost-efficiency by preventing over-tightening. Ideal for valve connections, this connector offers precision and reliability in high-pressure and chemical applications.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

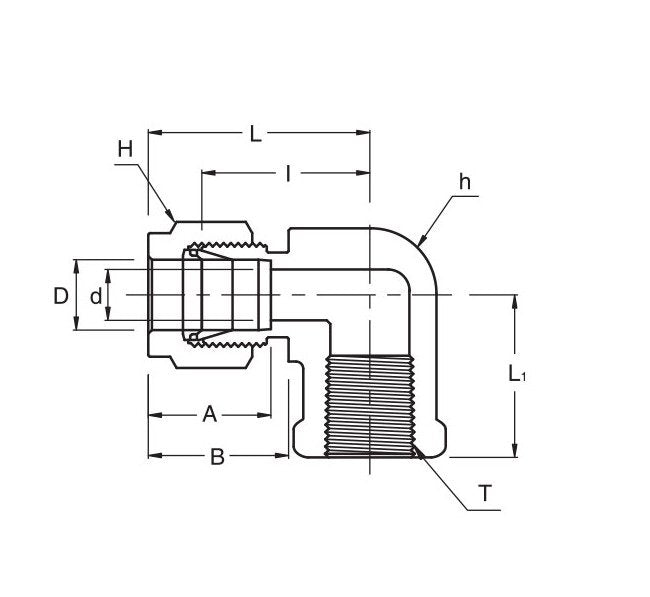

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Female
Technical Specs Dimension A
31.24 mm
Technical Specs Dimension B
26.41 mm
Technical Specs Dimension I
36.83 mm
Technical Specs Dimension L
49.02 mm
Technical Specs Dimension L1
31.75 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
22.35 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Thread Size T
3/4 in
Technical Specs Thread Type
National Pipe Thread (NPT)
Technical Specs Tube Outside Diameter D
1 in
Technical Specs Width Across Flat H
1-1/2 in
