Industrial Flow-Thru Inflatable Pipe Plugs
Industrial Flow-Thru Inflatable Pipe Plugs
SKU:INF-1ab522
Durable Industrial Flow-Thru Pipe Plugs with large bypass for water tests & chemical applications. Sizes 12-24 in.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Industrial Flow-Thru Inflatable Pipe Plugs
$499.99
Quantity: 1
Claim Your Seller Account
Industrial Flow-Thru Inflatable Pipe Plugs
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

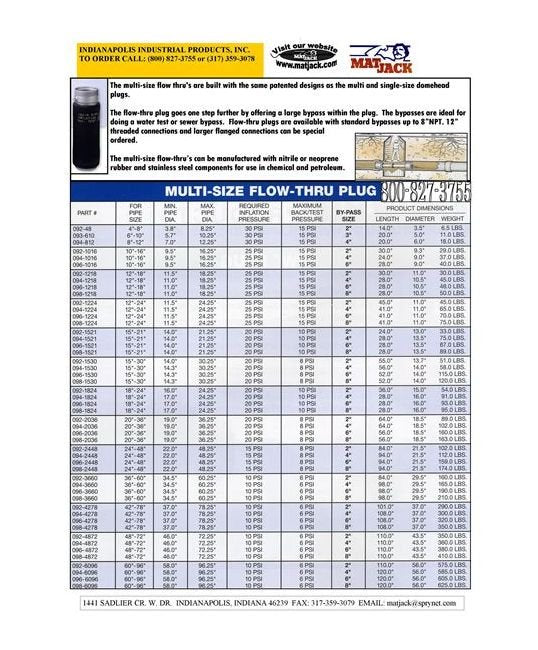

The Industrial Flow-Thru Inflatable Pipe Plugs are designed with patented domehead technology, featuring a large bypass for water tests or sewer bypass operations. With a bypass up to 8" NPT and 12" on order, these plugs are crafted with durable nitrile or neoprene rubber and stainless steel components for chemical and petroleum applications. Ranging from 12 to 24 inches in pipe size and weighing 70 lbs., these plugs offer a minimum pipe diameter of 11.5 inches and a maximum of 24.25 inches. Operating at 25 psi inflation pressure and with a maximum back/test pressure of 15 psi, these plugs ensure reliable performance and versatility for industrial applications.
Product Specifications
Specifications By Pass
6 in.
Specifications Diameter
11.0 in.
Specifications Length
41.0 in.
Specifications Maximum Backtest Pressure
15 psi
Specifications Maximum Pipe Diameter
24.25 in.
Specifications Minimum Pipe Diameter
11.5 in.
Specifications Pipe Size
12 - 24 in.
Specifications Required Inflation Pressure
25 psi
Specifications Weight
70.0 lbs.
