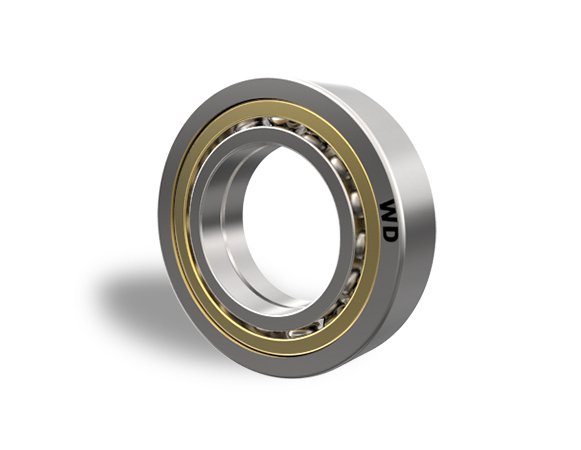

Industrial Four Point Contact Ball Bearings - 110x200x38 mm
Industrial Four Point Contact Ball Bearings - 110x200x38 mm
SKU:ANG-bfcf81
High-performance Four Point Contact Ball Bearings - Ideal for heavy-duty industrial use!
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Industrial Four Point Contact Ball Bearings - 110x200x38 mm
$149.99
Quantity: 1
Claim Your Seller Account
Industrial Four Point Contact Ball Bearings - 110x200x38 mm
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Industrial Four Point Contact Ball Bearings offer precision performance with a bore diameter of 110mm, outside diameter of 200mm, and overall bearing width of 38mm. With a dynamic load rating of 242 kN and static load rating of 275 kN, these bearings ensure reliable operation under varying loads. Designed for efficiency, they have a grease limiting speed of 2500 rpm and an oil limiting speed of 3400 rpm. Compliant with Federal/DoD procurement standards, these bearings provide exceptional quality for institutional applications.

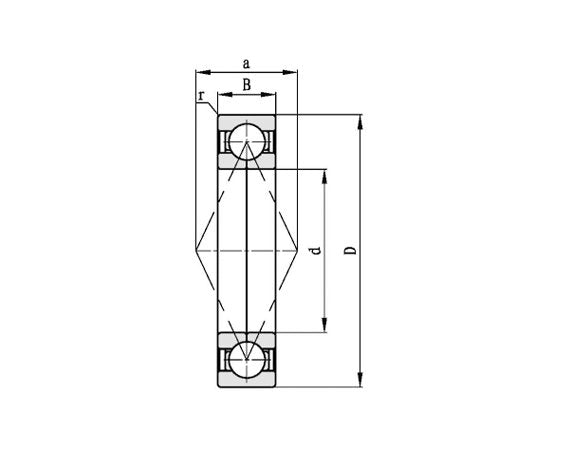

Product Specifications
Boundary Dimensions Bore Diameter
110 mm
Boundary Dimensions Minimum Dimension R
2.1 mm
Boundary Dimensions Outside Diameter
200 mm
Boundary Dimensions Overall Bearing Width
38 mm
Limiting Speed Grease Limiting Speed
2500 rpm
Limiting Speed Oil Limiting Speed
3400 rpm
Load Rating Dynamic Cr Load Rating
242 kN
Load Rating Static Cor Load Rating
275 kN
Shoulder Dimensions Maximum Shoulder Dimension Da
188 mm
Shoulder Dimensions Maximum Shoulder Dimension Ra
2 mm
Shoulder Dimensions Minimum Shoulder Dimension Da
122 mm
Specifications Approximate Mass
5.64 kg
Specifications Distance Of Working Points A
108.5 mm
