Industrial Glass-Fiber Control Lever Arm
Industrial Glass-Fiber Control Lever Arm
SKU:LEV-eb3da8
Durable Glass-Fiber Control Lever Arm for precise industrial control, featuring Steel Arm, Aluminum Trim Disc, and precise design for optimal performance.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Industrial Glass-Fiber Control Lever Arm
$49.99
Quantity: 1
Claim Your Seller Account
Industrial Glass-Fiber Control Lever Arm
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

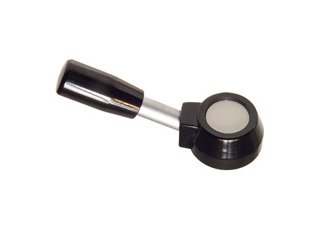

The Industrial Glass-Fiber Control Lever Arm is a robust and reliable solution for precise control in industrial settings. Constructed with Glass-Fiber Thermoplastic material and a Plated Steel Arm with a Black Oxide Steel Insert, this lever arm offers durability and strength. It features an Anodized Aluminum Trim Disc, two holes for spring and ball detent insertion, and an angle limit stop pin slot. With a base diameter of 1.46 in and an overall length of 3.19 in, this lever arm provides smooth operation and precise functionality. Compliant with industry standards for quality and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Alternate Pn
29200
Specifications A Base Diameter
1.46 in
Specifications B Bushing Id
0.32 in
Specifications Country Of Origin
-
Specifications C Bushing Od
0.71 in
Specifications D Trim Disk Diameter
0.83 in
Specifications E Hole Spacing
0.20 in
Specifications Finish
Plated Steel Arm with a Black Oxide Steel Insert
Specifications F Overall Height
1.81 in
Specifications G Hole Depth
0.67 in
Specifications H Base Height
0.79 in
Specifications I Hole Location 1
0.87 in
Specifications J Hole Location 2
1.02 in
Specifications K Overall Length To Center Line
3.19 in
Specifications Material
Glass-Fiber Thermoplastic
Specifications Protrusion
0.02 in
Specifications Type
Single Arm Control Lever
Specifications Warning
Prop 65 Warning: This product may contain chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
