Industrial-Grade 0.3" Music Wire Compression Spring

Name: Industrial-Grade 0.3" Music Wire Compression Spring
Brand: Murphy & Read Spring Mfg. Co., Inc.
SKU: COM-cd9717
Price: 5.83 USD
Availability: OutOfStock

SKU:COM-cd9717

High-quality 0.3" Music Wire Compression Spring for industrial applications

$5.83

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

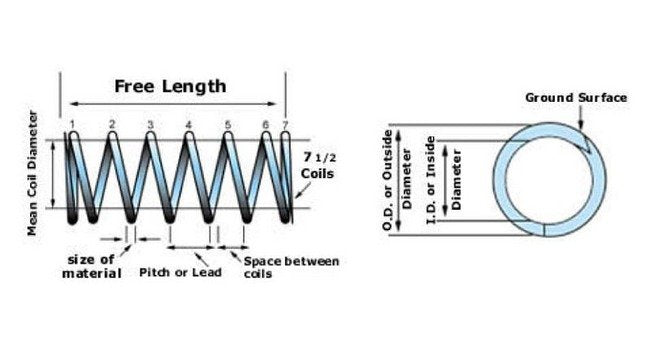

The Industrial-Grade 0.3 Inch Music Wire Compression Spring is a high-quality component designed for reliable performance in industrial applications. Made of durable music wire, this spring features an outside diameter of 0.3 inches, wire diameter of 0.032 inches, and a free length of 0.688 inches. With a load capacity of 5.7 MW and 4.86 SS, a solid HT of 0.219, and a spring rate of 16.2 MW and 13.88 SS, this compression spring delivers consistent and efficient operation. It is meticulously engineered to meet stringent standards, offering precision and durability for various industrial and institutional requirements.

Product Specifications

Specifications Ends

FEG

Specifications Free Length

0.688

Specifications Length L1

0.336

Specifications List Price

5.83 USD

Specifications Load At L1 Mw

5.7

Specifications Load Ss

4.86

Specifications Material

Music Wire

Specifications Outside Diameter

0.3

Specifications Solid Ht

0.219

Specifications Spring Rate Mw

16.2

Specifications Spring Rate Ss

13.88

Specifications Total Coils

6.844

Specifications Type

Compression

Specifications Wire Diameter

0.032
