Industrial Grade 120 Gallon Vertical Air Receiver with 24" Diameter
Industrial Grade 120 Gallon Vertical Air Receiver with 24" Diameter
SKU:VER-f1ee19
Reliable 120 Gal Vertical Air Receiver built to ASME standards. Ideal for various pressure needs. Contact for higher-pressure options.
Regular price
$799.99
Regular price
Sale price
$799.99
Unit price
per
Initiate Order
Industrial Grade 120 Gallon Vertical Air Receiver with 24" Diameter
$799.99
Quantity: 1
Claim Your Seller Account
Industrial Grade 120 Gallon Vertical Air Receiver with 24" Diameter
$799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Industrial Grade 120 Gallon Vertical Air Receiver with a 24-inch Diameter is designed to meet ASME standards, making it an ideal choice for both consumer and institutional buyers. With a standard design temperature of 450 ºF and a design pressure of 200 psi, this air receiver ensures reliable and safe operations. It features NPT threaded openings, a grey oxide primer finish, and is available in high-pressure options up to 600 psi. For larger capacity needs, receivers up to 3800 gallons are also available. Contact us for pricing on higher-pressure models.

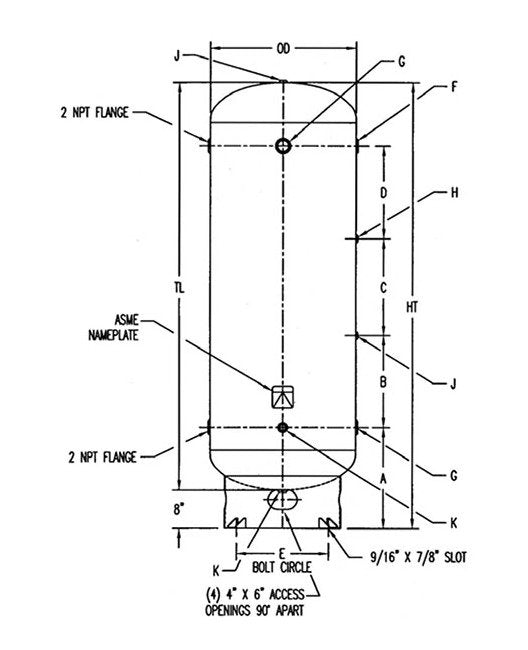

Product Specifications
Dimensions Dimension A
13 in
Dimensions Dimension B
14 in
Dimensions Dimension C
13 in
Dimensions Dimension D
13.00 in
Dimensions Dimension E
8 in
Dimensions Dimension F
20 in
Note 0
Call for pricing on higher pressure. Larger receivers available to 3800 gallons.
Openings Opening G
2 in
Openings Opening H
1/4 in
Openings Opening J
1/2 in
Openings Opening K
1 in
Openings Opening L
1 in
Openings Opening M
1/2 in
Openings Opening N
2 in
Specifications Design Pressure
200 psi
Specifications Diameter
24 in
Specifications Height
77 in
Specifications Industry Standards
ASME
Specifications Length
69 in
Specifications Standard Design Temperature
450 ºF
Specifications Volume
120 gal
