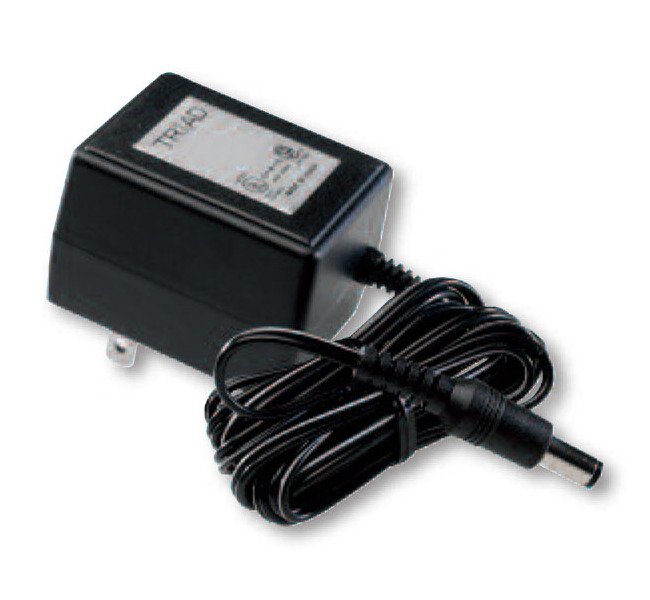

The Industrial Grade AC Power Supply Plug-Ins by Triad are specially designed for rigorous Commercial and Industrial applications. These compact power sources eliminate the need for internal cooling devices, reducing noise levels and overall product weight. Enclosed for tamper-proof protection, these power supplies keep heat away from sensitive circuits while delivering a safe lower output. With multiple agency listings, these plug-ins facilitate gaining necessary approvals. Available in a wide range of popular voltages, these AC/DC unregulated models offer reliability and efficiency for industrial and commercial use.
Product Specifications
Note Note
Specifications subject to change without notice

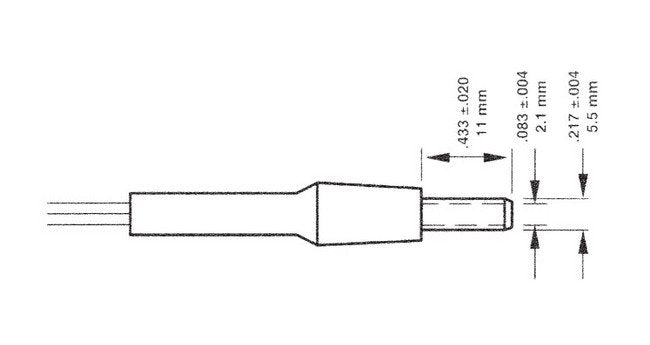

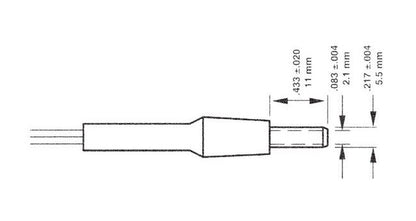

Output Plug Dimensions Inside Diameter Id
2.1 mm
Output Plug Dimensions Length L
11 mm
Output Plug Dimensions Outside Diameter Od
5.5 mm
Specifications Depth D
55 mm
Specifications Height H
85 mm
Specifications Input Power
38.0 W
Specifications Input Voltage Ac
120 V
Specifications Output Current Ac
2.5 A
Specifications Output Voltage Ac
12.0 V
Specifications Type
AC/DC Unregulated
Specifications Width W
68 mm
Technical Notes Technical Notes
Inside (tip) - positive (+), outside - negative (-)Plug use on DC and AC models
