Industrial Grade CB Clutch and Brake Assembly - Model PCB-204
Industrial Grade CB Clutch and Brake Assembly - Model PCB-204
SKU:CLU-0358a9
Powerful and reliable industrial CB clutch and brake assembly, ideal for high-speed operations and precise power transmission. Compliant with government procurement standards.
Regular price
$2,599.99
Regular price
Sale price
$2,599.99
Unit price
per
Initiate Order
Industrial Grade CB Clutch and Brake Assembly - Model PCB-204
$2,599.99
Quantity: 1
Claim Your Seller Account
Industrial Grade CB Clutch and Brake Assembly - Model PCB-204
$2,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Industrial Grade PCB-204 Assembly from the CB Clutches and Brakes product line features a robust design tailored for reliable clutch or brake performance in demanding industrial environments. With a torque rating of 13300 lb·in at 75 psi, this assembly excels in high-speed cyclic operations and power transmission applications. Manufactured by Eaton-Airflex, it offers precision and durability, making it ideal for institutional and government procurement needs. Compliant with Federal/DoD procurement standards, GSA requirements, FAR regulations, and industry-specific certifications.

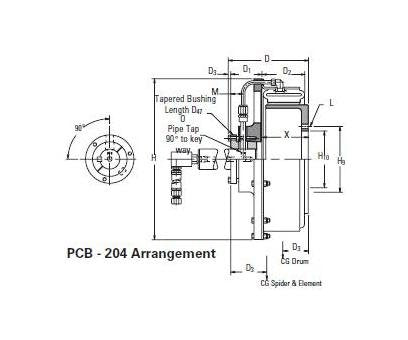

Product Specifications
Specifications Actuation
Air Applied
Specifications Air Inlet Thread
3/8-18 in
Specifications Bolt Hole Size L
0.531 in | 13.5 mm
Specifications Dimension D
8.84 in | 225 mm
Specifications Dimension D2
4.13 in | 105 mm
Specifications Dimension D24
2.00 in | 51 mm
Specifications Dimension D37
4.0 in | 102 mm
Specifications Dimension D38
1.5 in | 38 mm
Specifications Dimension H
15.37 in | 390 mm
Specifications Dimension H10
6.250 in | 158.8 mm
Specifications Dimension H9
7.250 in | 184.2 mm
Specifications Dimension O
1/4-18 in
Specifications Dimension X
5.69 in | 145 mm
Specifications Manufacturer
Eaton-Airflex
Specifications Minimum P
9.06 in | 230 mm
Specifications Number Of Mounting Holes
6
Specifications Shaft Diameter For Spider Or Drum
2.563 thru 3.125
Specifications Size
12CB350
Specifications Torque Rating At 52 Bar
1500 Nm
Specifications Torque Rating At 75 Psi
13300 lb·in
