Industrial Grade CB Drum Hubs - Size 12CB350
Industrial Grade CB Drum Hubs - Size 12CB350
SKU:CLU-6e5d05
Reliable Industrial Grade CB Drum Hubs for high-speed operations in demanding applications. Ensure smooth power transmission.
Regular price
$259.99
Regular price
Sale price
$259.99
Unit price
per
Initiate Order
Industrial Grade CB Drum Hubs - Size 12CB350
$259.99
Quantity: 1
Claim Your Seller Account
Industrial Grade CB Drum Hubs - Size 12CB350
$259.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unmatched reliability and performance with our Industrial Grade CB Drum Hubs in Size 12CB350. Built to excel in high-speed, cyclic operations, these hubs are ideal for demanding industrial applications. With a robust design, tapped holes, and precise dimensions, they ensure seamless clutch or brake functionality and efficient power transmission. Trust in their durability and precision for your critical operations.

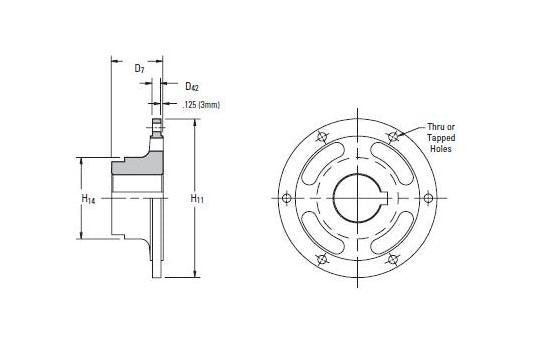

Product Specifications
Specifications Dimension D42
0.63 in | 16 mm
Specifications Dimension D7
3.25 in | 83 mm
Specifications Dimension H11
8.25 in | 210 mm
Specifications Dimension H14
5.00 in | 127 mm
Specifications Inertia
0.88 lb·ft² | 0.04 kg·m²
Specifications Maximum Bore
3.00 in | 76 mm
Specifications Minimum Bore
1.50 in | 38 mm
Specifications Size
12CB350
Specifications Type
Tapped Holes
Specifications Weight
18 lb | 8.2 kg
