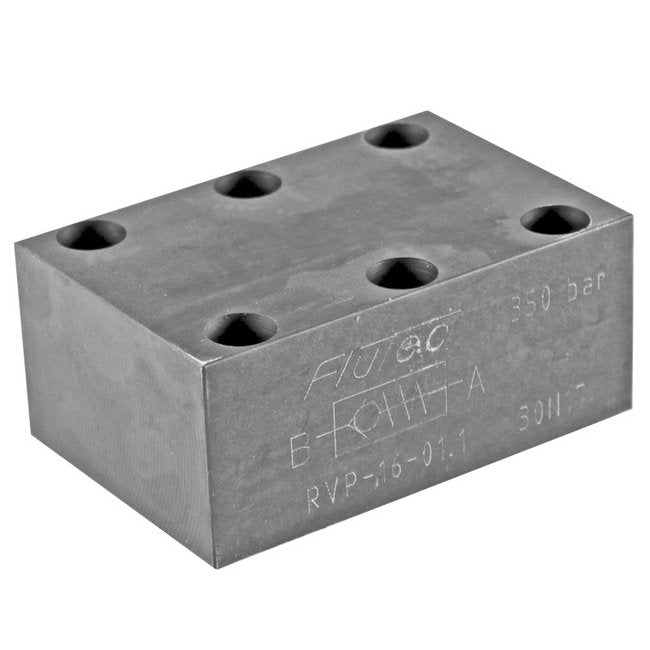

Industrial Grade Check Valves with Manifold Mounting
Industrial Grade Check Valves with Manifold Mounting
SKU:ACC-930b66
Top-quality Check Valves for precise flow control in industrial settings.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Industrial Grade Check Valves with Manifold Mounting
$99.99
Quantity: 1
Claim Your Seller Account
Industrial Grade Check Valves with Manifold Mounting
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Industrial Grade Check Valves with Manifold Mounting are designed as reliable flow control valves suitable for a range of applications. Built with a steel poppet featuring a metal-to-metal seal design, these valves ensure secure sealing and optimal performance. With a temperature range of -4 to 212 °F and an operating pressure of 345 bar, they deliver consistent results in demanding industrial environments. Available in nine sizes with versatile NPT or SAE O-Ring connections, these valves offer flexibility and durability. Note: Not recommended for high-cycle applications. Ensure certified print for critical dimensions.
Product Specifications
Features 0
9 Sizes, 1/8" - 2"NPT or SAE O-Ring connections and manifold mountingMetal to metal seal design for poppetHardened and ground steel poppet
Note 0
Not recommended for high-cycle applications!Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºC.Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Dimension L
5.24 in | 133 mm
Specifications Housing Material
Carbon Steel
Specifications Kinematic Viscosity At 86 F30 C
335 SUS
Specifications Model Code Description
RVP-20-01.1 o.F.
Specifications Mounting Type
Manifold Mounting
Specifications Nominal Sizes
20
Specifications Operating Pressure Max
345 bar | 5000 psi
Specifications Short Description
RVP Check valves
Specifications Temperature At Full Pressure Max
212 ºF
Specifications Temperature At Full Pressure Min
-4 ºF
Specifications Type
Flow Control Valve
Specifications Valve Operator
Knob
Specifications Weight
0.1 kg | 0.22 lb
