Industrial Grade Conductive Engineering Plastic Composite - 140% Tensile Elongation
Industrial Grade Conductive Engineering Plastic Composite - 140% Tensile Elongation
SKU:ENG-df87a5
Durable Industrial Grade Conductive Composite with 140% Tensile Elongation - Perfect for IC Trays & More.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Industrial Grade Conductive Engineering Plastic Composite - 140% Tensile Elongation
$49.99
Quantity: 1
Claim Your Seller Account
Industrial Grade Conductive Engineering Plastic Composite - 140% Tensile Elongation
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our Industrial Grade Conductive Engineering Plastic Composite offers superior performance in various applications such as IC trays, ATM parts, and more. With a 140% tensile elongation at break, it provides exceptional flexibility and durability. Meeting ASTM standards for specific gravity, melt flow index, tensile strength, flexural modulus, and more, this composite is ideal for institutional and government procurement needs. Enhance your projects with the conductivity and strength of our composite material.
Product Specifications
Additional Information
Optimum compound can be provided by CNT dispersion and base material suitable to customer requirements.Dimensional stability, strength characteristics, gloss control, excellent heat distortion characteristics, etc.CNT is known as having excellent electrical conductivity, thermal conductivity, strength, and thermal stability. Demand for Li-ion Battery as positive electrode conductive additives has been increasing and CNT is also being used in applications such as tire treads and antistatic resins.Kumho's CNT have a highly oriented bundle structure and have been used by major battery manufacturers and tire manufacturers globally. Multiple grades of CNT are available depending on required property and each application, and we also have various types of rubber and resin compound and masterbatches.Kumho Petrochemical with one of the world's largest synthetic rubber manufacturing capacities was established in 1970 and developing their business in several fields including synthetic resins, specialty chemicals, nanocarbons, energy, and building materials.Major application with Kumho's CNTLi-ion Battery as positive electrode conductive additives for automotiveTire treadsElectronic Parts TraysConductive coatingElectro-Magnetic Interference (EMI) Shielding CompositeConductive resin/rubber
Applications Applications

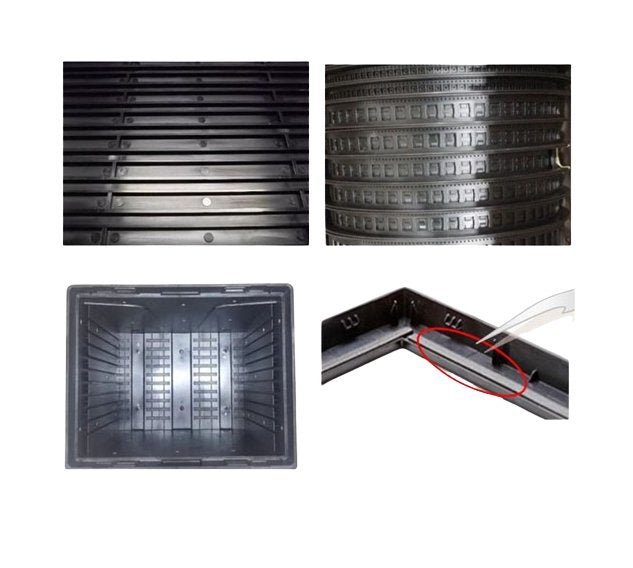

IC Trays
Applications Surface Resistance
106~108 Ω/sq.
Properties Flamability 116 Inch In 16 Millimeter Mm
HB
Properties Flexural Modulus
22,560 kgf/cm²
Properties Flexural Strength
860 kgf/cm²
Properties Heat Deflection Temperature 186 Kilogram Kgsq
134 ºC
Properties Izod Impact Notched 32 Millimeter Mm
20 kgf·cm/cm
Properties Melt Flow Index 300 Degree Celsius C Temperat
6
Properties Rockwell Hardness R Scale
122
Properties Specific Gravity
1.2
Properties Surface Resistivity At 23 Degree Celsius C Te
6~8 E+Ω/sq
Properties Tensile Elongation At Break
140 %
Properties Tensile Strength
654 kgf/cm²
Properties Test Method For Flamability 116 Inch In 16 Mi
American Society for Testing and Materials (ASTM) UL94
Properties Test Method For Flexural Modulus
American Society for Testing and Materials (ASTM) D790
Properties Test Method For Flexural Strength
American Society for Testing and Materials (ASTM) D790
Properties Test Method For Heat Deflection Temperature 1
American Society for Testing and Materials (ASTM) D648
Properties Test Method For Izod Impact Notched 32 Millim
American Society for Testing and Materials (ASTM) D256
Properties Test Method For Melt Flow Index 300 Degree Ce
American Society for Testing and Materials (ASTM) D1238
Properties Test Method For Rockwell Hardness R Scale
American Society for Testing and Materials (ASTM) D785
Properties Test Method For Specific Gravity
American Society for Testing and Materials (ASTM) D792
Properties Test Method For Surface Resistivity At 23 Deg
American Society for Testing and Materials (ASTM) D257
Properties Test Method For Tensile Elongation At Break
American Society for Testing and Materials (ASTM) D638
Properties Test Method For Tensile Strength
American Society for Testing and Materials (ASTM) D638
