Industrial Grade Diamond Negative Chipbreaker R1 with Hole, Thickness 0.196/0.202 in
Industrial Grade Diamond Negative Chipbreaker R1 with Hole, Thickness 0.196/0.202 in
SKU:TUR-0d1ec0
Enhance turning operations with our Industrial Grade Diamond Negative Chipbreaker R1 featuring precise dimensions for roughing applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Industrial Grade Diamond Negative Chipbreaker R1 with Hole, Thickness 0.196/0.202 in
$29.99
Quantity: 1
Claim Your Seller Account
Industrial Grade Diamond Negative Chipbreaker R1 with Hole, Thickness 0.196/0.202 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

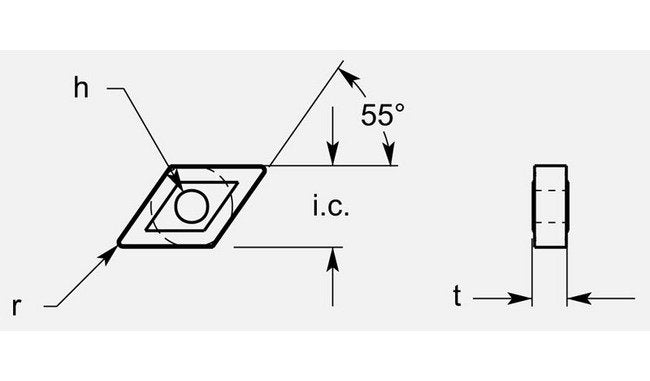

Upgrade your turning operations with our Industrial Grade Diamond Negative Chipbreaker R1. With a thickness of 0.196/0.202 inches, an Inscribed Circle of 0.622/0.628 inches, and a precise Radius of 1/32 inches, this chipbreaker is designed for roughing operations at a 55-degree angle. The integrated hole measuring 0.247/0.253 inches ensures efficient chip evacuation. Available in various grades upon request, this chipbreaker combines durability and precision for superior performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Classifications Operation
Roughing
Dimensional Specification Angle A
55 º
Dimensional Specification Hole
0.247 / 0.253 in
Dimensional Specification Inscribed Circle Ic
0.622/0.628 in
Dimensional Specification Radius R
1/32 in
Dimensional Specification Thickness T
0.196 / 0.202 in
Grade Availability Grade Availability
Available on Request
