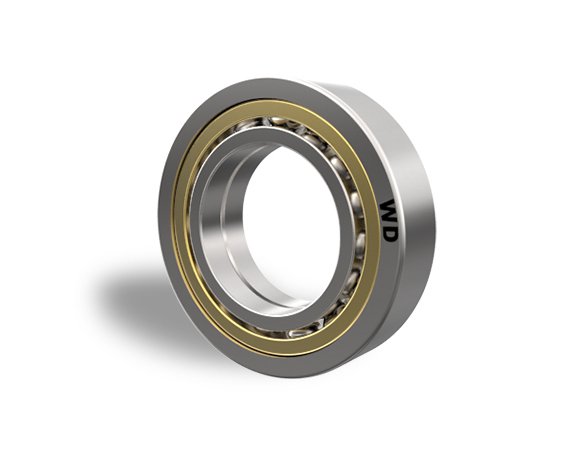

Industrial Grade Four Point Contact Ball Bearings
Industrial Grade Four Point Contact Ball Bearings
SKU:ANG-a684b8
Durable Industrial Grade Ball Bearings for heavy loads & high precision. Meets Govt. standards.
Regular price
$199.99
Regular price
Sale price
$199.99
Unit price
per
Initiate Order
Industrial Grade Four Point Contact Ball Bearings
$199.99
Quantity: 1
Claim Your Seller Account
Industrial Grade Four Point Contact Ball Bearings
$199.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Our Industrial Grade Four Point Contact Ball Bearings are engineered for maximum durability and efficiency in demanding industrial applications. With bore diameter of 85mm and load ratings of 234 kN, these bearings ensure reliable performance under heavy loads. Meeting Federal/DoD procurement standards and GSA requirements, they are also compliant with FAR regulations and DLA standards, making them ideal for government procurement needs. Industry-certified and TAA compliant, these bearings provide high precision and optimal functionality.
Product Specifications

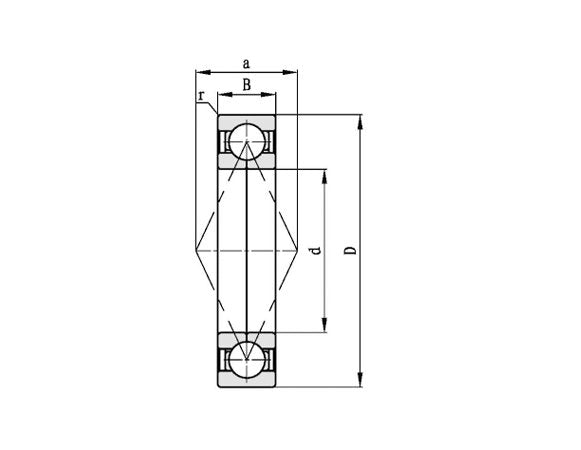

Boundary Dimensions Bore Diameter
85 mm
Boundary Dimensions Minimum Dimension R
3 mm
Boundary Dimensions Outside Diameter
180 mm
Boundary Dimensions Overall Bearing Width
41 mm
Limiting Speed Grease Limiting Speed
3000 rpm
Limiting Speed Oil Limiting Speed
4100 rpm
Load Rating Dynamic Cr Load Rating
234 kN
Load Rating Static Cor Load Rating
234 kN
Shoulder Dimensions Maximum Shoulder Dimension Da
166 mm
Shoulder Dimensions Maximum Shoulder Dimension Ra
2.5 mm
Shoulder Dimensions Minimum Shoulder Dimension Da
99 mm
Specifications Approximate Mass
5.45 kg
Specifications Distance Of Working Points A
92.8 mm
