Industrial Grade High Power Magnetic Chuck
Industrial Grade High Power Magnetic Chuck
SKU:HIG-ad3e07
Enhanced holding power Industrial Grade Magnetic Chuck for heavy-duty applications.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Industrial Grade High Power Magnetic Chuck
$249.99
Quantity: 1
Claim Your Seller Account
Industrial Grade High Power Magnetic Chuck
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

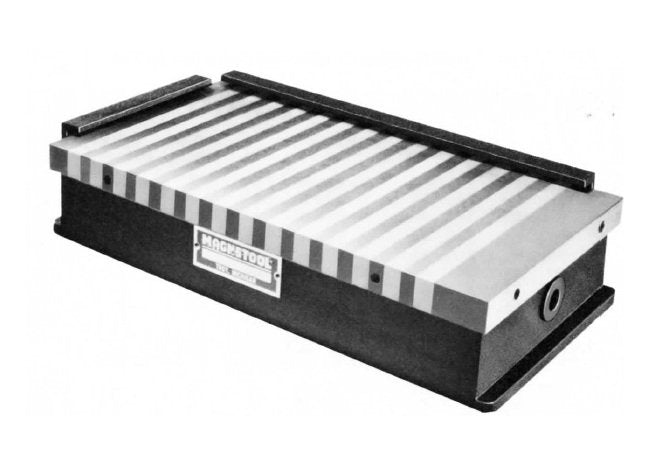

The Industrial Grade High Power Magnetic Chuck is designed for heavy-duty applications, offering increased holding power using Ceramic V magnets. The top plate, crafted from 3/8 in. magnetic steel and 3/8 in. non-magnetic stainless steel, is furnace brazed to create a durable, one-piece construction. This chuck allows for precise drilling or machining between poles or anywhere on the top plate, excluding areas where screws secure the plate to the base. With a work area of 10 1/2 x 6 3/16 inches and convenient removable handles, this magnetic chuck combines strength, versatility, and ease of use.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Base Length
10 1/4 in
Specifications Base Width
6 in
Specifications Features
Handles on all permanent magnetic chucks are removable.
Specifications Height
2 7/16 in
Specifications Length
10 in
Specifications Top Plate Material
3/8 in. Magnetic Steel | 3/8 in. Non-Magnetic Stainless Steel
Specifications Weight
28 lb
Specifications Width
6 in
Specifications Work Area L X W
10 1/2 x 6 3/16 in
