Industrial Grade Large Bipolar Electromagnet
Industrial Grade Large Bipolar Electromagnet
SKU:LAR-6a8bdf
Efficiently handle steel bundles with the Industrial Grade Large Bipolar Electromagnet. Customizable for diverse needs, this magnet ensures strong magnetic grip on curved or irregular surfaces.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Industrial Grade Large Bipolar Electromagnet
$1,899.99
Quantity: 1
Claim Your Seller Account
Industrial Grade Large Bipolar Electromagnet
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Industrial Grade Large Bipolar Electromagnet features an extended, parallel pole design that enhances the magnetic field's reach and accommodates curved or irregular workpieces. With both north and south poles making contact, it efficiently handles steel bundles, die blocks, castings, and more. Customizable pole shoes cater to diverse handling needs, while its robust specifications ensure a capacity of 5500 lb with a 2:1 safety factor. Ideal for industrial applications requiring reliable and powerful magnetic handling.
Product Specifications
Manufacturing Notes 0
Capacity ratings shown include a 2:1 safety factor.
Specifications Capacity
5500 lb

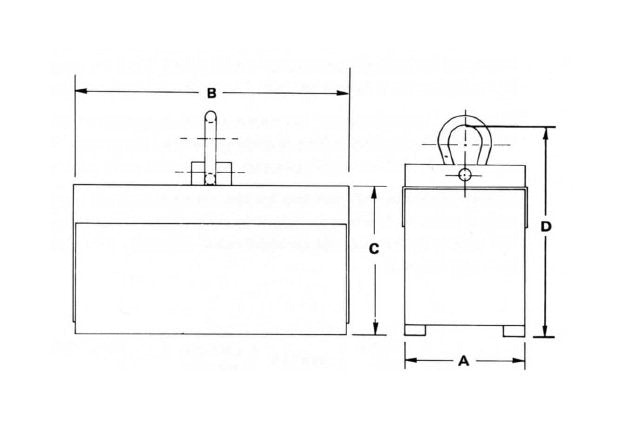

Specifications Dimension A
6 1/2 in
Specifications Dimension B
17 in
Specifications Dimension C
9 in
Specifications Dimension D
16 1/2 in
Specifications Power
260 W
Specifications Weight
200 lb
