Industrial Grade Large Bipolar Electromagnet
Industrial Grade Large Bipolar Electromagnet
SKU:LAR-90b158
Efficiently handle heavy loads with our Industrial Grade Bipolar Electromagnet - perfect for curved workpieces. Custom pole shoes available.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Industrial Grade Large Bipolar Electromagnet
$1,899.99
Quantity: 1
Claim Your Seller Account
Industrial Grade Large Bipolar Electromagnet
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Industrial Grade Large Bipolar Electromagnet features an extended parallel pole design that enhances the magnetic field reach, making it ideal for handling curved or irregular workpieces with ease. With a capacity of 7800 lbs and custom replaceable pole shoes available, this electromagnet is versatile for various industrial applications. Its power rating of 300W ensures efficient performance, while the 2:1 safety factor included in the capacity ratings meets stringent safety standards.
Product Specifications
Manufacturing Notes 0
Capacity ratings shown include a 2:1 safety factor.
Specifications Capacity
7800 lb

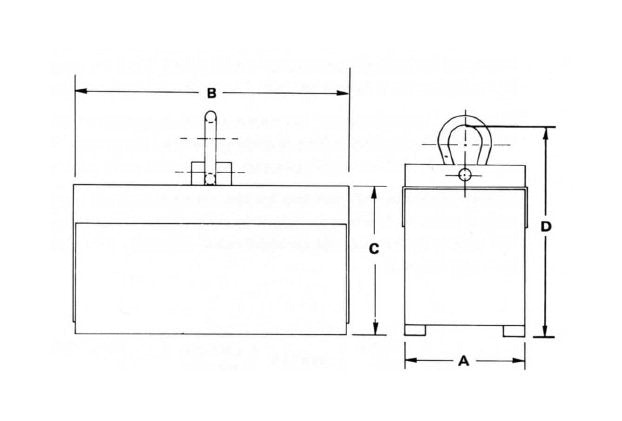

Specifications Dimension A
6 1/2 in
Specifications Dimension B
23 3/4 in
Specifications Dimension C
9 in
Specifications Dimension D
16 1/2 in
Specifications Power
300 W
Specifications Weight
300 lb
