Industrial Grade Large Loop Demagnetizer
Industrial Grade Large Loop Demagnetizer
SKU:LAR-f1b28c
Powerful and precise Large Loop Demagnetizer for industrial demagnetization. NEMA 12 Enclosure, Continuous Duty Operation. Maximize efficiency and durability!
Regular price
$3,499.99
Regular price
Sale price
$3,499.99
Unit price
per
Initiate Order
Industrial Grade Large Loop Demagnetizer
$3,499.99
Quantity: 1
Claim Your Seller Account
Industrial Grade Large Loop Demagnetizer
$3,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

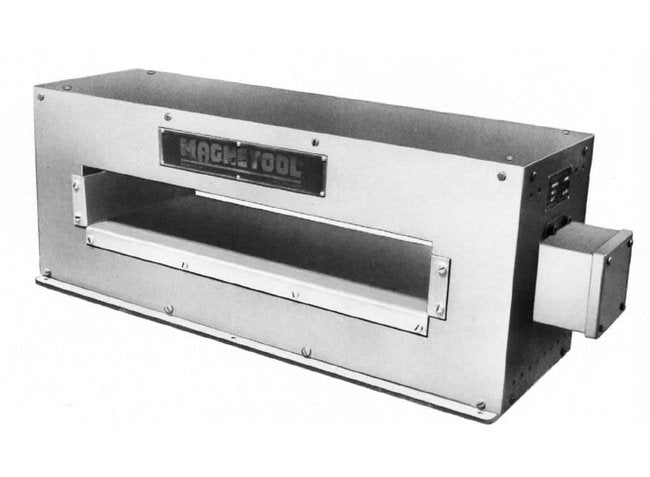

The Industrial Grade Large Loop Demagnetizer is designed for heavy-duty demagnetization applications in industrial settings. With an opening height of 12 inches and width of 24 inches, it ensures workpieces pass through the strongest magnetic field for effective demagnetization. Featuring a NEMA 12 Enclosure and made of Magnetic Steel combined with Non-Magnetic Stainless Steel, Aluminum, and Brass materials, this demagnetizer guarantees durability and efficiency. It operates at 100% continuous duty, with a net weight of 350 lb and options for single-phase voltages of 230 VAC (60 A) and 460 VAC (30 A). Ensure optimal demagnetization by following standard practices like using non-metallic surfaces and incorporating safety features like a fused disconnect switch.
Product Specifications
Additional Information 0
Another method is to place a Surface Type Demagnetizer under the belt and if necessary, another unit suspended over the belt so the work passes between the two Demagnetizers. These Demagnetizers should be placed on a non-metallic surface to reduce the heating caused by induction.A fused disconnect switch should be inserted in the AC supply line for protection. Special demagnetizer controls can be furnished with a NEMA 12 enclosure, push buttons, pilot lamp, ammeter, voltmeter, foot pedal, and automatic timers. An alternative is to have only the belt pass through the demagnetizer.
Manufacturing Notes 0
CAUTION: Demagnetizers should not be used near sensitive electronic equipment. Special standards are available.
Specifications Current For Single Phase Voltage 230 Vac
60 A
Specifications Current For Single Phase Voltage 460 Vac
30 A
Specifications Duty Percentage
100 %
Specifications Duty Type
Continuous
Specifications Material
Magnetic Steel | Non-Magnetic Stainless Steel, Aluminum, Brass.
Specifications Net Weight
350 lb
Specifications Opening Height
12 in
Specifications Opening Width
24 in
Specifications Overall Depth
12 in
Specifications Overall Height
25 in
Specifications Overall Width
36 in
Specifications Standards
NEMA 12 Enclosure
