Industrial Grade Large Loop Demagnetizer
Industrial Grade Large Loop Demagnetizer
SKU:LAR-ac35dc
Efficiently demagnetize workpieces of all sizes using this heavy-duty Large Loop Demagnetizer with precise controls and NEMA 12 enclosure.
Regular price
$2,799.99
Regular price
Sale price
$2,799.99
Unit price
per
Initiate Order
Industrial Grade Large Loop Demagnetizer
$2,799.99
Quantity: 1
Claim Your Seller Account
Industrial Grade Large Loop Demagnetizer
$2,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

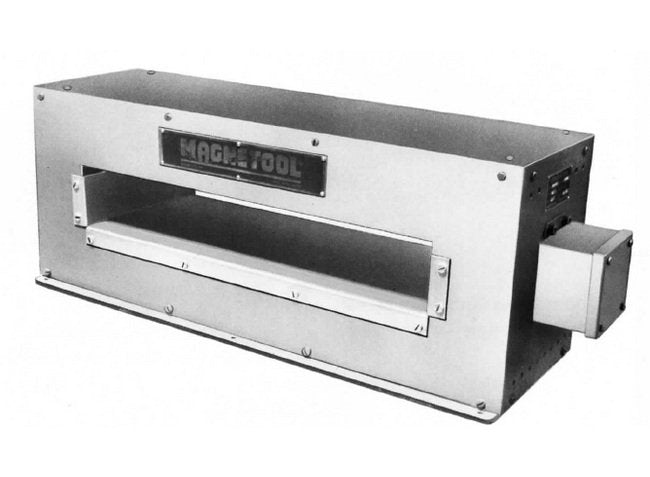

The Industrial Grade Large Loop Demagnetizer is designed for continuous heavy-duty use, with an opening height of 9 inches and width of 18 inches, ensuring workpieces of various sizes desist magnetism. This demagnetizer, encased in a NEMA 12 enclosure, prevents induction-induced heat in magnetic steel components. Equipped with specialized controls such as push buttons, ammeter, and automatic timers, this demagnetizer can be tailored to meet specific demagnetization needs. Additionally, the unit's split conveyors with non-magnetic materials ensure efficient demagnetization of assemblies while avoiding excessive heat buildup.
Product Specifications
Additional Information 0
Another method is to place a Surface Type Demagnetizer under the belt and if necessary, another unit suspended over the belt so the work passes between the two Demagnetizers. These Demagnetizers should be placed on a non-metallic surface to reduce the heating caused by induction.A fused disconnect switch should be inserted in the AC supply line for protection. Special demagnetizer controls can be furnished with a NEMA 12 enclosure, push buttons, pilot lamp, ammeter, voltmeter, foot pedal, and automatic timers. An alternative is to have only the belt pass through the demagnetizer.
Manufacturing Notes 0
CAUTION: Demagnetizers should not be used near sensitive electronic equipment. Special standards are available.
Specifications Current For Single Phase Voltage 230 Vac
36 A
Specifications Current For Single Phase Voltage 460 Vac
18 A
Specifications Duty Percentage
100 %
Specifications Duty Type
Continuous
Specifications Material
Magnetic Steel | Non-Magnetic Stainless Steel, Aluminum, Brass.
Specifications Net Weight
212 lb
Specifications Opening Height
9 in
Specifications Opening Width
18 in
Specifications Overall Depth
9 1/2 in
Specifications Overall Height
19 in
Specifications Overall Width
28 in
Specifications Standards
NEMA 12 Enclosure
