Industrial Grade Large Loop-Type Demagnetizer
Industrial Grade Large Loop-Type Demagnetizer
SKU:LAR-a0ef69
Efficiently demagnetize workpieces with the Industrial Grade Large Loop-Type Demagnetizer. Intermittent duty, durable NEMA 12 construction.
Regular price
$1,899.00
Regular price
Sale price
$1,899.00
Unit price
per
Initiate Order
Industrial Grade Large Loop-Type Demagnetizer
$1,899.00
Quantity: 1
Claim Your Seller Account
Industrial Grade Large Loop-Type Demagnetizer
$1,899.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

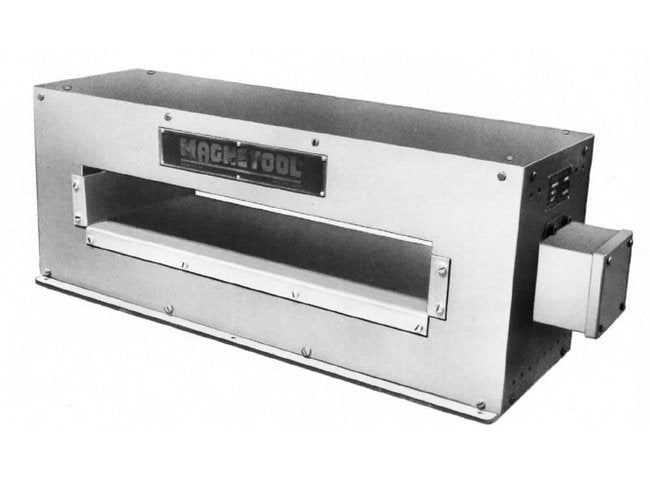

The Industrial Grade Large Loop-Type Demagnetizer is designed for efficient demagnetization of workpieces. With an opening height of 9 inches and width of 18 inches, it accommodates various sizes. Constructed with NEMA 12 Enclosure standards using Magnetic Steel and Non-Magnetic Stainless Steel, Aluminum, Brass materials, it ensures durability and safety. The unit operates at an intermittent duty percentage of 25%, preventing excessive heat buildup in magnetic steel components. Additionally, it offers versatile demagnetization controls and can be customized to meet specific requirements, making it ideal for industrial applications where precision is key.
Product Specifications
Additional Information 0
Another method is to place a Surface Type Demagnetizer under the belt and if necessary, another unit suspended over the belt so the work passes between the two Demagnetizers. These Demagnetizers should be placed on a non-metallic surface to reduce the heating caused by induction.A fused disconnect switch should be inserted in the AC supply line for protection. Special demagnetizer controls can be furnished with a NEMA 12 enclosure, push buttons, pilot lamp, ammeter, voltmeter, foot pedal, and automatic timers. An alternative is to have only the belt pass through the demagnetizer.
Manufacturing Notes 0
CAUTION: Demagnetizers should not be used near sensitive electronic equipment. Special standards are available.
Specifications Current For Single Phase Voltage 230 Vac
36 A
Specifications Current For Single Phase Voltage 460 Vac
18 A
Specifications Duty Percentage
25 %
Specifications Duty Type
Intermittent
Specifications Material
Magnetic Steel | Non-Magnetic Stainless Steel, Aluminum, Brass.
Specifications Net Weight
212 lb
Specifications Opening Height
9 in
Specifications Opening Width
18 in
Specifications Overall Depth
9 1/2 in
Specifications Overall Height
19 in
Specifications Overall Width
28 in
Specifications Standards
NEMA 12 Enclosure
