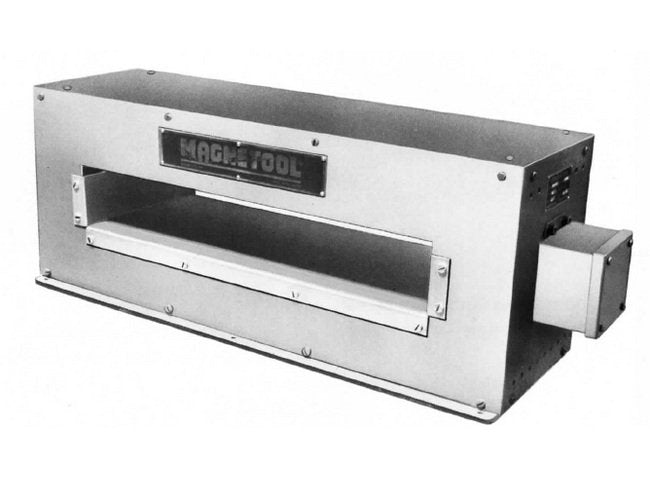

Industrial Grade Large Loop-Type Demagnetizer
Industrial Grade Large Loop-Type Demagnetizer
SKU:LAR-633580
Efficiently demagnetize large workpieces with our industrial-grade solution. Intermittent duty type, NEMA 12 enclosure, and non-magnetic material compatibility.
Regular price
$1,799.99
Regular price
Sale price
$1,799.99
Unit price
per
Initiate Order
Industrial Grade Large Loop-Type Demagnetizer
$1,799.99
Quantity: 1
Claim Your Seller Account
Industrial Grade Large Loop-Type Demagnetizer
$1,799.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Industrial Grade Large Loop-Type Demagnetizer is designed for efficient demagnetization of large workpieces, ensuring they pass through the strong magnetic field for effective results. With an intermittent duty type and NEMA 12 enclosure, this demagnetizer offers a reliable solution for industrial applications. It features an opening height of 3 inches, width of 6 inches, and overall dimensions of 24 1/2" W x 11" H x 8" D, meeting stringent standards for performance and safety. The inclusion of non-magnetic materials like stainless steel, aluminum, and brass prevents heat induction in magnetic steel components, ensuring optimal demagnetization without damage.
Product Specifications
Additional Information 0
Another method is to place a Surface Type Demagnetizer under the belt and if necessary, another unit suspended over the belt so the work passes between the two Demagnetizers. These Demagnetizers should be placed on a non-metallic surface to reduce the heating caused by induction.A fused disconnect switch should be inserted in the AC supply line for protection. Special demagnetizer controls can be furnished with a NEMA 12 enclosure, push buttons, pilot lamp, ammeter, voltmeter, foot pedal, and automatic timers. An alternative is to have only the belt pass through the demagnetizer.
Manufacturing Notes 0
CAUTION: Demagnetizers should not be used near sensitive electronic equipment. Special standards are available.
Specifications Current For Single Phase Voltage 230 Vac
8 A
Specifications Current For Single Phase Voltage 460 Vac
4 A
Specifications Duty Percentage
25 %
Specifications Duty Type
Intermittent
Specifications Material
Magnetic Steel | Non-Magnetic Stainless Steel, Aluminum, Brass.
Specifications Net Weight
80 lb
Specifications Opening Height
3 in
Specifications Opening Width
6 in
Specifications Overall Depth
8 in
Specifications Overall Height
11 in
Specifications Overall Width
24 1/2 in
Specifications Standards
NEMA 12 Enclosure
