Industrial Grade Needle Flow Control Valve - DV-10 NPTF
Industrial Grade Needle Flow Control Valve - DV-10 NPTF
SKU:ACC-0690ff
Achieve precise flow control with the DV-10 NPTF Valve. NPTF thread, carbon steel construction, and safety spindle design ensure reliability and safety.
Regular price
$159.99
Regular price
Sale price
$159.99
Unit price
per
Initiate Order
Industrial Grade Needle Flow Control Valve - DV-10 NPTF
$159.99
Quantity: 1
Claim Your Seller Account
Industrial Grade Needle Flow Control Valve - DV-10 NPTF
$159.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The DV-10 NPTF Flow Control Valve is a precision-engineered industrial component designed for precise flow control in critical applications. Featuring NPTF thread connections and a robust carbon steel construction, this valve ensures reliable performance under high pressure and temperature conditions. The color-coded spindle allows for easy and accurate flow adjustments, while the unique safety spindle design enhances operational safety. With a flow rate of 80 gpm and an operating pressure of 5000 psi, this valve is ideal for industrial and institutional settings requiring precise fluid control.
Product Specifications
Dimensions Diameter G
1.14 in | 29 mm
Dimensions Diameter H
0.75 in | 19 mm
Dimensions Dimension A
2.91 in | 74 mm
Dimensions Dimension B
2.64 in | 67 mm
Dimensions Dimension C
0.59 in | 15 mm
Dimensions Dimension D
1.18 in | 30 mm
Dimensions Dimension E
1.14 in | 29 mm
Dimensions Dimension F
2.28 in | 58 mm
Dimensions Dimension J
Pg 11 Thread
Dimensions Pipe Outer Diameter Od
0.675 in
Dimensions Pipe Size
3/8 in
Note 0

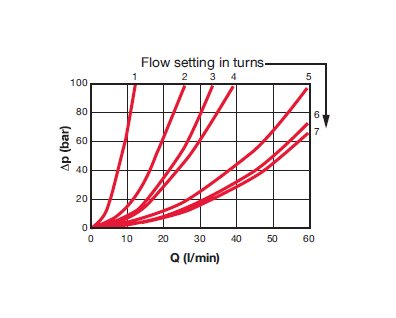

Pressure Drop curves were established by using mineral oil with kinematic viscosity 165 SUS at 112 ºF / 50 ºC.Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Division
ACCESSORIES
Specifications Finish
Zinc Plated
Specifications Flow
80 gpm
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
American National Standards Institute (ANSI)
Specifications Material
Carbon Steel
Specifications Model Code Description
DV-10-01.X/5-S
Specifications Mounting Type
Inline Mounting
Specifications Nominal Size
10
Specifications Operating Pressure
5000 psi
Specifications O Ring Material
Fluoroelastomer (FPM)
Specifications Panel Mount Kits
Model Code: Kit Panel Mount DV08Part Number: 00705310
Specifications Port Configuration
NPTF - ANSI B1.20.3
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Seal Material
Fluoroelastomer (FPM)
Specifications Temperature Range At Full Pressure Max
-4 to 212 ºF
Specifications Type
Needle
Specifications Valve Operator
Knob
Specifications Weight
0.4 kg | 0.88 lb
Supplementary Details 0
Panel Mounting Kit
