Industrial-Grade NPT Couplings
Industrial-Grade NPT Couplings
SKU:VOO-0ddcec
Enhance your piping systems with durable NPT Couplings for seamless connections. Ideal for high-pressure applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Industrial-Grade NPT Couplings
$29.99
Quantity: 1
Claim Your Seller Account
Industrial-Grade NPT Couplings
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your piping systems with our Industrial-Grade NPT Couplings. These couplings are expertly designed to allow seamless connection between standard-size tubing and pipes. Featuring a pressure rating based on the lower rated connection used, our couplings ensure reliable performance under high pressures. With precision engineering and durable materials, these couplings are built to last, minimizing maintenance and replacement costs. Seal NPT threads effectively using high-quality PTFE tape and paste, following manufacturer instructions for optimal performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

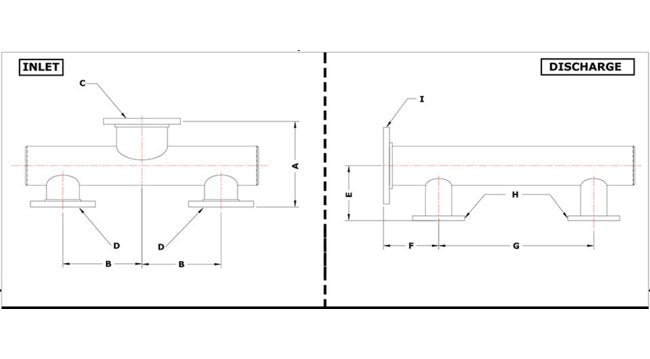

Dimension Discharge Flange Size H
12 x 19 in
Dimension Discharge Flange Size I
16 x 23-1/2 in | 400 x 565 mm
Dimension Discharge Size E
16-1/8 in | 410 mm
Dimension Discharge Size F
10 in | 254 mm
Dimension Discharge Size G
72-1/4 in
Dimension Inlet Flange Size C
20 x 27-1/2 in | 500 x 670 mm
Dimension Inlet Flange Size D
14 x 21 in
Dimension Inlet Size A
39-11/16 in | 1008 mm
Dimension Inlet Size B
36-1/8 in | 918 mm
Dimension Note For Dimension
Bolt Holes Straddle Center LineAll Flanges Flat Faced with ANSI Bolt PatternManifolds are Constructed of CS, 304SS or 316SS
Material Construction Features Bearing Carrier Material
Carbon Steel
Material Construction Features Cone Material
316 Cast Stainless Steel (SS)
Material Construction Features Head Material
316 Cast Stainless Steel (SS)
Material Construction Features Housing Material
316 Cast Stainless Steel (SS)
Material Construction Features Package Gland Studs And Nuts Mate
316 Cast Stainless Steel (SS)
Material Construction Features Rotor Material
316 Cast Stainless Steel (SS)
Material Construction Features Shaft Material
316 Cast Stainless Steel (SS)
Specifications Approximate Pump Weight
10,100 kg
Specifications Nominal Sealing Liquid Flow Rate At 20 To 24 Inch
340 to 420 L/min
Specifications Number Of Pump Inlet Flange Connections
2
Specifications Number Of Pump Outlet Flange Connections
2
Specifications Pump Inlet Flange Connection Size
350 mm
Specifications Pump Outlet Flange Connection Size
300 mm
Specifications Sealing Liquid Connection Size
2 in
Specifications Sealing Liquid Connection Type
National Pipe Thread (NPT)
Specifications Shaft Diameter Drive End
190.5 mm
Specifications Shaft Sealing
Packing
Specifications Type
Single stage rotor, cone shape ports, liquid ring vacuum pump
Test Data Conditions Absolute Barometric Pressure
760 mmHg | 29.92 inHg
Test Data Conditions Certifications
German Institute for Standardization (DIN)
Test Data Conditions Inlet Gas Temperature
15.6 ºC | 60 ºF
Test Data Conditions Relative Humidity
50 %
Test Data Conditions Sealing Liquid Temperature
15.6 ºC | 60 ºF
