Industrial-Grade Oil Mist Eliminator Filter
Industrial-Grade Oil Mist Eliminator Filter
SKU:CLE-ad6748
Efficiently capture oil mist emissions with our Heavy Duty Oil Mist Filter. Superior oil separation for industrial applications.
Regular price
$704.90
Regular price
Sale price
$704.90
Unit price
per
Initiate Order
Industrial-Grade Oil Mist Eliminator Filter
$704.90
Quantity: 1
Claim Your Seller Account
Industrial-Grade Oil Mist Eliminator Filter
$704.90
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

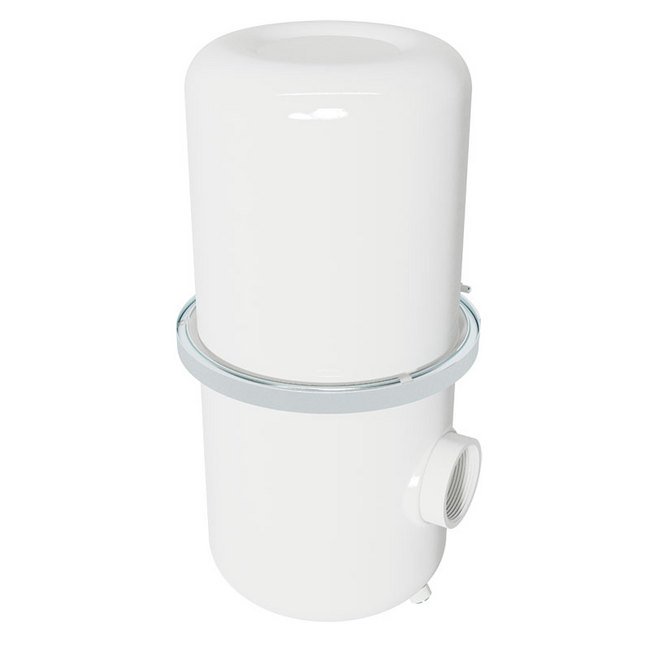

The Heavy Duty Oil Mist Filter is designed to efficiently capture oil fog, mist, or aerosol emissions from the exhaust of oil-sealed vacuum pumps, allowing for easy recycling of waste oil. Equipped with a pleated filter element, this filter offers increased surface area for the low back pressure separation of ultra-fine oil mists. The seamless drawn housings with O-ring seals are made of corrosive-resistant white powder-coated carbon steel, ensuring durability. With a discharge baffle and NPSC connections, this filter is easy to install and maintain. It features a 1/4” NPSC drain tap for convenient disposal. Suitable for industrial applications requiring air flow of up to 175 scfm, this filter has a micron size of .3 µm and inlet/outlet connection size of 2 inches, meeting the highest standards of air filtration.
Product Specifications
Financing Approve Payments
Finance with Approve Payments
Specifications Air Flow
175 scfm
Specifications Connection Type
NPSC

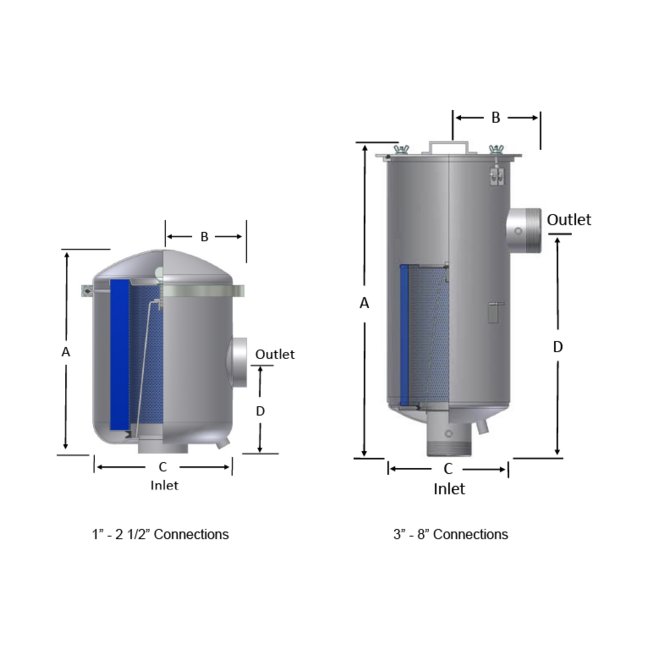

Specifications Dimension A
17.5 in
Specifications Dimension B
4.56 in
Specifications Dimension C
7.68 in
Specifications Dimension D
5 in
Specifications Inlet And Outlet Connection Size
2 in
Specifications Media
Coalescing
Specifications Micron Size
.3 µm
Specifications Replacement Element Kit
PSG860/1
Specifications Web Price
704.90 USD
