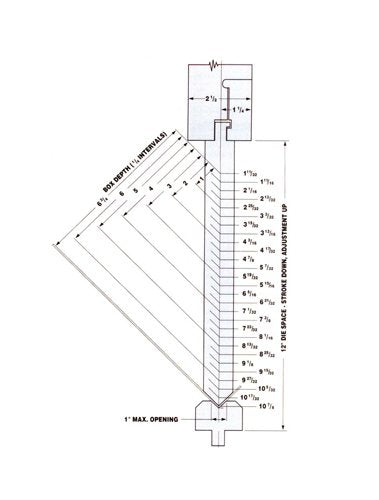

The Industrial Grade Press Brake Box Forming Die is a high-quality tool designed for precise box forming applications. Featuring a high male punch and low female die, this die ensures accurate and efficient forming in a 90-degree die setup. With a standard 12-inch die space, this die can handle box depths up to 6 1/2", while specially machined 60-30 degree dies can form boxes up to 7 1/4" on 16 GA material and lighter. Increase shut height for deeper boxes. This die meets strict industry standards for durability and performance, making it an ideal choice for industrial and institutional procurement needs.
Product Specifications
Specifications Depth Of Box To Be Formed
1 | 1 1/2 | 2 | 2 1/2 | 3 | 3 1/2 | 4 | 4 1/2 | 5 | 5 1/2 | 6 | 6 1 /2 | 7 | 7 1/2 | 8 | 8 1/2 | 9 | 9 1/2 | 10
Specifications Minimum Height Of 30 To 60 Punch
1 15/16 | 2 33/64 | 3 3/32 | 4 3/64 | 4 1/4 | 4 53/64 | 5 13/32 | 5 63/64 | 6 9/16 | 7 9/64 | 7 23/32 | 8 19/64 | 8 7/8 | 9 29/64 | 10 1/32 | 10 39/64 | 11 3/16 | 11 49/64 | 12 11/32
Specifications Minimum Height Of Standard 90 Punch
2 3/4 | 3 15/32 | 4 11/64 | 4 57/64 | 5 37/64 | 6 19/64 | 7 | 7 23/32 | 8 13/32 | 9 7/64 | 9 53/64 | 10 17/32 | 11 15/64 | 11 61/64 | 12 21/32 | 13 3/8 | 14 1/16 | 14 49/64 | 15 31/64
Specifications Note
In forming a box, where four sides are bent up. The punch must be high enough so that when making the last two bends, the preformed sides do not strike the ram.
