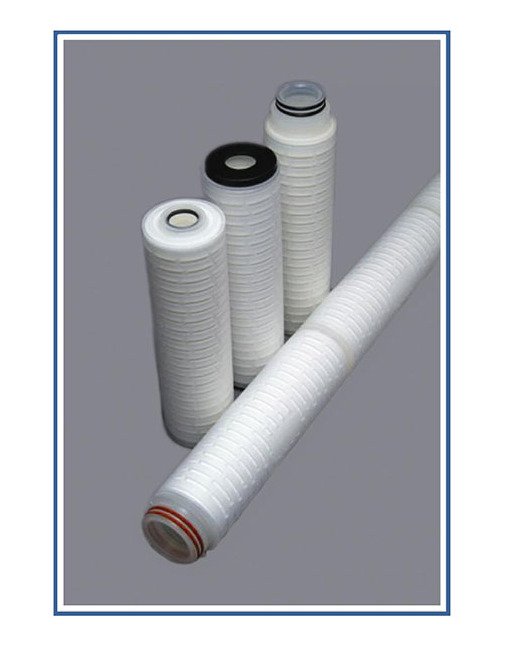

Industrial-Grade PTFE Membrane Cartridges
Industrial-Grade PTFE Membrane Cartridges
SKU:PLE-b2f5f8
Enhance filtration efficiency with GTM Grade PTFE Cartridges, crafted for pharmaceutical, semiconductor, and chemical industries.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Industrial-Grade PTFE Membrane Cartridges
$39.99
Quantity: 1
Claim Your Seller Account
Industrial-Grade PTFE Membrane Cartridges
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience superior filtration efficiency with our GTM Grade PTFE Cartridges, specifically engineered for demanding applications in pharmaceutical, semiconductor, and chemical industries. These cartridges feature a hydrophobic PTFE membrane for filtration of aggressive solvents and gases. With optimized design for prolonged lifespan and low operating costs, each cartridge undergoes rigorous integrity testing to ensure performance reliability. Compliant with FDA standards, USP class 6 Toxicology extractable tests, and other quality benchmarks, our cartridges are ideal for critical process filtration needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications 0
Final Filtration of:Compressed AirSolventsPressurized GasesTank Ventilation
Construction Materials Center Core Material
Polypropylene
Construction Materials End Caps Material
Polypropylene
Construction Materials Filtration Media
PTFE
Construction Materials Filtration Media Support Material
Polypropylene
Construction Materials Note
All materials of construction are FDA accepted. Final assemblies have been validated to pass USP class 6 Toxicology extractable tests, oxidizable substances for plastics, endotoxin level and other quality tests.
CONSTRUCTION MATERIALS OUTER SUPPORT CAGE Material
Polypropylene
Construction Materials O Rings Material
Buna | EP | PTFE® Encapsulated Silicone | PTFE® Encapsulated Viton® | Silicone | Viton®
Construction Materials Sealing Method
Thermal Bonding
Dimensions Filtration Area Per 10 Length
7.0 ft² | 0.65 m²
Dimensions Nominal Length
5 to 40 in | 12.7 to 101.6 cm
Dimensions Nominal Outside Diameter
2.75 in | 7.0 cm
Flow Rate 0

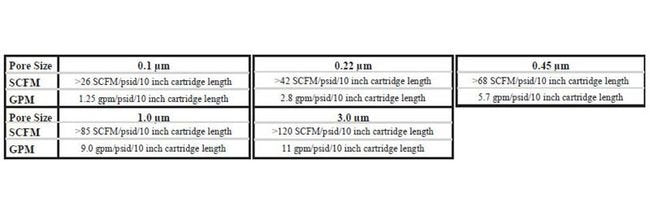

See the Flow Rate table in more image which represents typical water flow and air flow rates. These values are approximations because of the differences in pressure drop encountered in housings and piping systems. Extrapolation to multiple length cartridges in multi-round housings can be done for sizing purposes. Exact flow rates will be installation dependent.

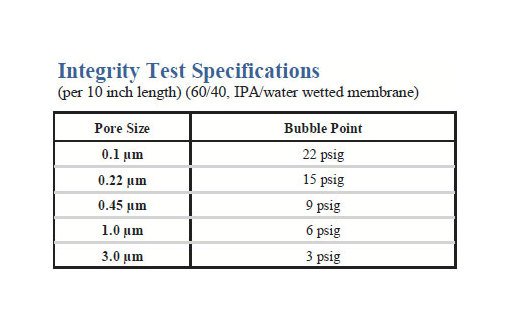

Integrity Test Information Bubble Point
22 psig
Maximum Operating Parameters Forward Differential Pressure At 20
50 psi | 3.4 bar
Maximum Operating Parameters Operating Temperature At 10 Psid 06
180 ºF | 82 ºC
Maximum Operating Parameters Reverse Differential Pressure At 20
40 psi | 2.7 bar
Quality Standards 0
Our goal is to ensure our customers the greatest possible value for their filtration dollar. We equipment is highly automated, reducing hand operations that achieve both low cost manufacture and high quality by employing state of the art manufacturing equipment. This computer controlled compromise quality. Each operation including assembly, testing, cleaning, drying and packaging is done in appropriately rated clean rooms. Critical Process Filtration manages an ISO 9000 facility that produces validated products to rigorous standards. Manufacturing is controlled using sophisticated MRP software that is networked to work stations in manufacturing centers and inspection points. During the manufacturing and inspection processes, data is collected "real time" from machinery and measuring instruments. This allows variable and attribute data to be quickly and easily analyzed to facilitate constant improvements in both quality and cost.
Sanitization Sterilization Autoclave
250ºF (121ºC), 30 min, multiple cycles
Sanitization Sterilization Chemical Sanitization
Industry standard concentrations of hydrogen peroxide, paracetic acid, sodium hypochlorite and other selected chemicals. Sanitization protocols designed to extend the useful life of GTM cartridges are available from Critical Process Filtration, Inc.®.
Sanitization Sterilization Filtered Hot Water
194 ºF | 90 ºC
Sanitization Sterilization In Line Steam
275ºF (135ºC), 30 min, multiple cycles
Specifications 316 Ss Ring
No Ring
Specifications Cartridge Length
29.25 in | 74.3 cm
Specifications End Caps
020 O-ring / Plug | 213/119 Internal O-ring / Plug | 213/119 Internal O-ring DOE | 2-222 O-ring / Flat | 2-222 O-ring / Plug | 2-222 O-ring / Spear | 2-222 O-ring 3 Tab / Flat | 2-222 O-ring 3 Tab / Spear | 2-223 O-ring / Flat | 2-223 O-ring / Spear | 2-226 O-ring / Flat | 2-226 O-ring / Spear | Flat Gasket / Plug | Flat Gasket, DOE
Specifications Flow Rate
>26 SCFM/psid/10 inch cartridge length | 1.25 gpm/psid/10 inch cartridge length
Specifications Pore Size
0.10 µm
Total Performance 0
Critical Process Filtration, Inc.® is a vertically integrated supplier of filtration products and services to industries in which filtration is considered to be a critical part of the manufacturing process. We manufacture a complete line of products to help you achieve all your filtration requirements from a single source.
