Industrial Grade Rectangular Lifting Magnet
Industrial Grade Rectangular Lifting Magnet
SKU:REC-de36a2
Powerful 25,000 lb lift capacity rectangular magnet for industrial lifting applications.
Regular price
$2,499.99
Regular price
Sale price
$2,499.99
Unit price
per
Initiate Order
Industrial Grade Rectangular Lifting Magnet
$2,499.99
Quantity: 1
Claim Your Seller Account
Industrial Grade Rectangular Lifting Magnet
$2,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

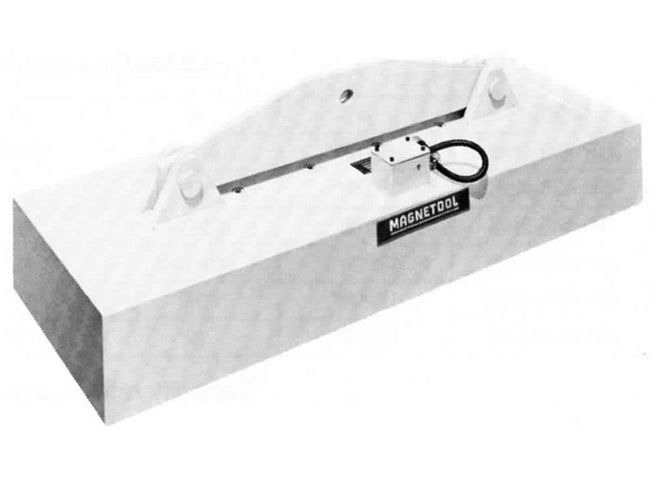

The Industrial Grade Rectangular Lifting Magnet is designed for heavy-duty lifting applications in industrial environments. With dimensions of 40" x 26" x 8 1/2" and a lift capacity of 25,000 lb, this magnet is ideal for lifting slabs, billets, castings, and more. It features a deep magnetic field for secure holding on irregular surfaces and a 2:1 safety factor for enhanced reliability. Operating at 230 VDC with a 50% duty cycle, this magnet can be used alone or in multiples on a spreader beam, providing versatility and efficiency for various lifting needs.
Product Specifications
Additional Information 0
Plate lifting magnetic assembly for lifting plate from 3/8 to 3 in. thick. Horizontal lift capacity is 25,000 lbs.; vertical lift is 10,000 lbs.
Specifications Current
10 A
Specifications Height
8 1/2 in
Specifications Length
40 in
Specifications Lift Capacity
25000 lb
Specifications Weight
2000 lb
Specifications Width
26 in
