Industrial Grade Rectangular Lifting Magnet
Industrial Grade Rectangular Lifting Magnet
SKU:REC-a394fb
Powerful Industrial Grade Lifting Magnet for secure and efficient heavy-duty lifting operations. Lifts up to 30,000 lbs with ease.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Industrial Grade Rectangular Lifting Magnet
$2,899.99
Quantity: 1
Claim Your Seller Account
Industrial Grade Rectangular Lifting Magnet
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

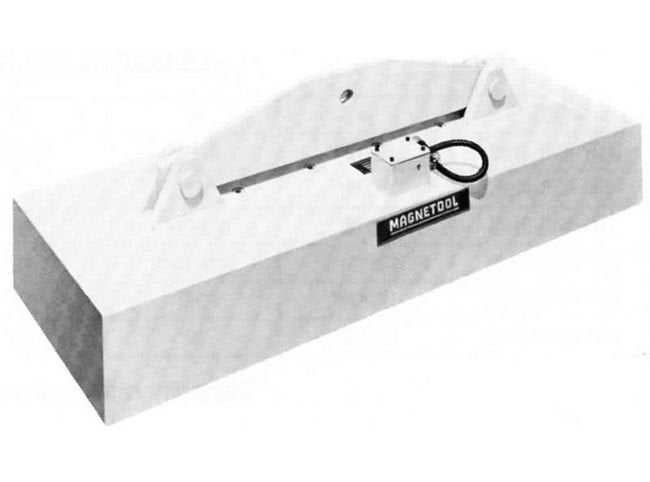

The Industrial Grade Rectangular Lifting Magnet is an essential tool for heavy-duty lifting operations in industrial settings. With precise specifications including a 60-inch length, 20-inch width, and 8 1/2-inch height, this magnet boasts a robust lift capacity of 30,000 lbs. Designed for versatility, it can effortlessly lift slabs, billets, castings, and thick plates with ease. Its deep magnetic field ensures a secure grip even on irregular surfaces and mill scales. Compliant with industry standards, this magnet operates at 230 VDC with a 50% duty cycle, providing a reliable lifting solution with a 2:1 safety factor on clean, low carbon steel.
Product Specifications
Additional Information 0

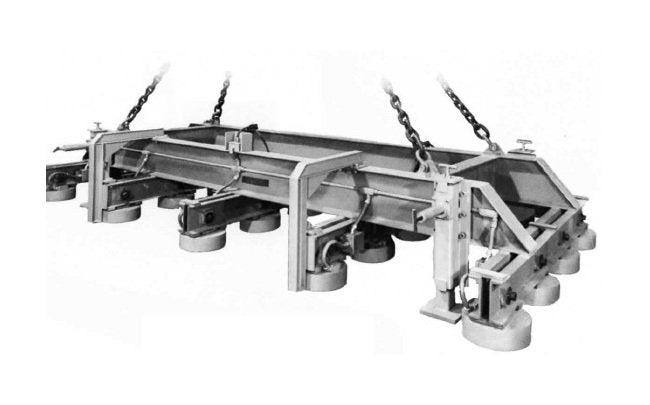

Plate lifting magnetic assembly for lifting plate from 3/8 to 3 in. thick. Horizontal lift capacity is 25,000 lbs.; vertical lift is 10,000 lbs.
Specifications Current
10 A
Specifications Height
8 1/2 in
Specifications Length
60 in
Specifications Lift Capacity
30000 lb
Specifications Weight
2300 lb
Specifications Width
20 in
