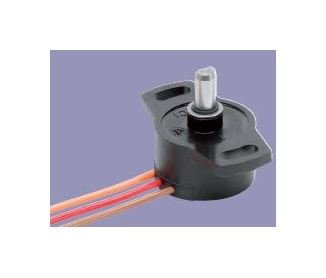

Industrial Grade Rotary Position Sensor - SP 2800 Series
Industrial Grade Rotary Position Sensor - SP 2800 Series
SKU:SP2-fb6c43
Highly reliable industrial rotary sensor for demanding applications. Sealed to IP65/IP54, precise measuring, easy mounting.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Industrial Grade Rotary Position Sensor - SP 2800 Series
$49.99
Quantity: 1
Claim Your Seller Account
Industrial Grade Rotary Position Sensor - SP 2800 Series
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Industrial Grade Rotary Position Sensor from the SP 2800 Series is tailor-made for demanding industrial and mobile applications. Built with a highly robust potentiometer, this sensor boasts a lifetime exceeding 50 million movements, ensuring longevity and reliability. With options for single channel or fully electrically redundant configurations, sealed to IP65 or IP54 standards, and designed for easy mounting and mechanical adjustment, this sensor offers exceptional performance and durability. Featuring a stainless steel shaft, conductive plastic resistance element, and precious metal multi-finger wiper assembly, this sensor ensures precise and accurate measuring in any orientation. Experience superior quality and reliability with the SP 2800 Series Rotary Position Sensor.
Product Specifications
Specifications Approximate Conductor Diameter
1 mm²
Specifications Approximate Conductor Length
300 mm
Specifications Continuous Mechanical Angles
360 º
Specifications Defined Electrical Angle
08 º | 100 º | 345 º
Specifications Defined Electrical Angle Tolerance
2
Specifications Degree Of Rotation
308 º
Specifications Dielectric Strength 50 Hz 2 S 1 Bar 500 Vac
= 100 µA
Specifications Electrical Connections Standard
1 = brown, 2 = red, 3 = orange | 1-channel: 3 conductors, diameter = 2.1 mm | 2-channel: 6 conductors, diameter = 1.6 mm | 4 = brown, 5 = red, 6 = orange | Conductors, TPE-PEE-insulation, l = 300 mm
Specifications Housing And Bearing
Hig-grade | Temperature-resistant plastic
Specifications Independent Linearity
0.3 % | 1.0 %
Specifications Insulation Resistance 500 Vdc 1 Bar 2 S
= 10 MO
Specifications Life
> 50x106 Movements
Specifications Maximum Allowed Wiper Current In Case Of Malfunct
10 mA
Specifications Maximum Dynamic Shaft Loading Axial And Radial
20 N
Specifications Maximum Operational Speed
120 rpm
Specifications Maximum Permissible Applied Voltage
42 V
Specifications Maximum Static Shaft Loading Axial And Radial
20 N
Specifications Maximum Torque For Mounting Screws With Washer
180 N·cm
Specifications Mounting
2 fillister head screws M4 with washers
Specifications Mounting Position
Any Orientation
Specifications Nominal Resistance
3 kO | 5 kO
Specifications Protection Class
IP 54 or IP 65 (DIN 400 50 / IEC 529)
Specifications Recommended Operating Wiper Current
= 1 µA
Specifications Repeatability
wit push-on coupling (shape D) < 0.06 | with 6 mm round shaft (shape B) < 0.03
Specifications Resistance Element
Conductive Plastic
Specifications Resistance Tolerance
20 %
Specifications Shaft
Stainless Steel
Specifications Shaft Diameter
6 mm
Specifications Special Features
Highly robust potentiometer for demanding industrial and mobile applications | Excellent lifetime - in excess of 50 million movements | Single channel or fully electrically redundant | Sealed to IP 65 or IP54 | Easy mounting and mechanical adjustment | Two shaft styles, including easy „push-on“ coupling | Excellent price/performance ratio
Specifications Temperature Range
-40 to 120 º C
Specifications Torque
0.2 (IP54) N·cm | 0.5 (IP65) N·cm
Specifications Vibration
5 to 2000 Hz | Amax = 0.75 | amax = 20
Specifications Weight
30 g
Specifications Wiper Assembly
Precious Metal multi-finger wiper
