Industrial Grade Sealing Plug for Unified/Straight Threads

Name: Industrial Grade Sealing Plug for Unified/Straight Threads
Brand: MOCAP LLC
SKU: SEA-1f88e7
Price: 129.99 USD
Availability: OutOfStock

SKU:SEA-1f88e7

Protect threaded ports with Industrial Grade Sealing Plugs. Easy to apply and remove, offering a secure seal against moisture and contaminants.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

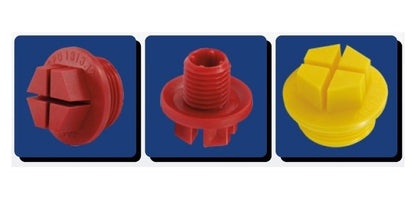

The Industrial Grade Sealing Plug for Unified/Straight Threads by MOCAP offers superior protection for threaded ports and fittings. Crafted from yellow Nylon, these plugs feature a Neoprene Rubber O-Ring ensuring a tight seal against moisture and contaminants. Designed for easy application and removal by hand or tools, these plugs meet RoHS compliance and suit thread sizes from 7/16-20 to 1-5/8-12. With high resistance to hydraulic fluids and acids, these plugs are ideal for industrial applications where a perfect seal is crucial.

Product Specifications

Features 0

Our SPU Series Plugs are: Yellow Nylon (offers high resistance against hydraulic fluids, solvents, acids and base alkalines)Sized to fit Unified/Straight Threads from 7/16-20 to 1-5/8-12Neoprene Rubber O-Ring

Manufacturing Notes 0

MOCAP stocks sealing plugs for Unified/Straight Threads in both red polypropylene and yellow nylon materials in many sizes for immediate shipment.Micro-Packs are only available online.These Sealing Plugs are also available with a factory-fit Neoprene Rubber O-Ring when a perfect seal is required.

Specifications Box Quantity

3000

Specifications Color

Yellow

Specifications Flange Outer Diameter Dimension A

0.980 in | 24.9 mm

Specifications Length Dimension C

0.470 in | 11.9 mm

Specifications Material

Nylon

Specifications Micro Pack Quantity

Specifications Mini Pack Quantity

600

Specifications O Ring Material

Neoprene Rubber

Specifications Standards

RoHS Compliant

Specifications Stem Height Dimension B

0.470 in | 11.9 mm

Specifications To Fit Standard Thread Size

5/8-18
