Industrial Grade Shaft Rotary Sensor - SP 2800 Series
Industrial Grade Shaft Rotary Sensor - SP 2800 Series
SKU:SP2-19e294
Highly robust and durable Shaft Rotary Sensor designed for demanding industrial applications. Offers precision measurements and easy installation.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Industrial Grade Shaft Rotary Sensor - SP 2800 Series
$129.99
Quantity: 1
Claim Your Seller Account
Industrial Grade Shaft Rotary Sensor - SP 2800 Series
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

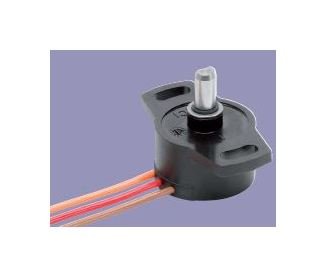

The Industrial Grade Shaft Rotary Sensor from the SP 2800 Series is engineered for precision and durability, ideal for demanding industrial and mobile applications. Featuring a highly robust potentiometer, this sensor boasts an excellent lifetime of over 50 million movements. With options for single channel or fully electrically redundant configurations, and sealed to IP65 or IP54 standards, this sensor ensures reliable performance in challenging environments. The stainless steel shaft, conductive plastic resistance element, and precious metal wiper assembly guarantee accuracy and longevity. Easy mounting, mechanical adjustment, and two shaft styles including a convenient 'push-on' coupling make installation a breeze.
Product Specifications
Specifications Approximate Conductor Diameter
1 mm²
Specifications Approximate Conductor Length
300 mm
Specifications Continuous Mechanical Angles
360 º
Specifications Coupling Type
Push-on Coupling
Specifications Defined Electrical Angle
08 º | 100 º | 345 º
Specifications Defined Electrical Angle Tolerance
2
Specifications Degree Of Rotation
345 º
Specifications Dielectric Strength 50 Hz 2 S 1 Bar 500 Vac
= 100 µA
Specifications Electrical Connections Standard
1 = brown, 2 = red, 3 = orange | 1-channel: 3 conductors, diameter = 2.1 mm | 2-channel: 6 conductors, diameter = 1.6 mm | 4 = brown, 5 = red, 6 = orange | Conductors, TPE-PEE-insulation, l = 300 mm
Specifications Housing And Bearing
Hig-grade | Temperature-resistant plastic
Specifications Independent Linearity
0.3 % | 1.0 %
Specifications Insulation Resistance 500 Vdc 1 Bar 2 S
= 10 MO
Specifications Life
> 50x106 Movements
Specifications Maximum Allowed Wiper Current In Case Of Malfunct
10 mA
Specifications Maximum Dynamic Shaft Loading Axial And Radial
20 N
Specifications Maximum Operational Speed
120 rpm
Specifications Maximum Permissible Applied Voltage
42 V
Specifications Maximum Static Shaft Loading Axial And Radial
20 N
Specifications Maximum Torque For Mounting Screws With Washer
180 N·cm
Specifications Mounting
2 fillister head screws M4 with washers
Specifications Mounting Position
Any Orientation
Specifications Nominal Resistance
3 kO | 5 kO
Specifications Protection Class
IP 54 or IP 65 (DIN 400 50 / IEC 529)
Specifications Recommended Operating Wiper Current
= 1 µA
Specifications Repeatability
wit push-on coupling (shape D) < 0.06 | with 6 mm round shaft (shape B) < 0.03
Specifications Resistance Element
Conductive Plastic
Specifications Resistance Tolerance
20 %
Specifications Shaft
Stainless Steel
Specifications Special Features
Highly robust potentiometer for demanding industrial and mobile applications | Excellent lifetime - in excess of 50 million movements | Single channel or fully electrically redundant | Sealed to IP 65 or IP54 | Easy mounting and mechanical adjustment | Two shaft styles, including easy „push-on“ coupling | Excellent price/performance ratio
Specifications Temperature Range
-40 to 120 º C
Specifications Torque
0.2 (IP54) N·cm | 0.5 (IP65) N·cm
Specifications Vibration
5 to 2000 Hz | Amax = 0.75 | amax = 20
Specifications Weight
30 g
Specifications Wiper Assembly
Precious Metal multi-finger wiper
