The Industrial Grade Single Drum from the CB Mounting Components line is tailored for demanding industrial environments requiring robust clutch or brake performance. With a Size of 24CB500 and a Weight of 130 lb, it excels in high-speed operations, cyclic tasks, and power transmission needs. Manufactured by Eaton-Airflex, this drum is meticulously crafted to ensure reliability and efficiency in the most rigorous applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

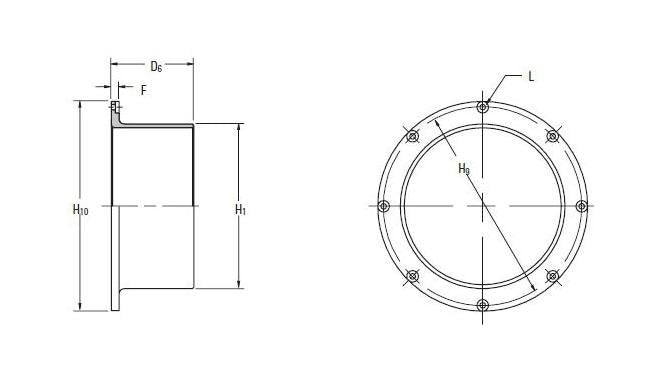

Specifications Bolt Diameter L
0.656 in | 17 mm
Specifications Dimension D6
8.00 in | 203 mm
Specifications Dimension F
1.00 in | 25 mm
Specifications Dimension H1
24 in | 610 mm
Specifications Dimension H10
28.875 in | 733.4 mm
Specifications Dimension H9
27.250 in | 692.2 mm
Specifications Inertia
139 lb·ft² | 5.84 kg·m²
Specifications Manufacturer
Eaton-Airflex
Specifications Number Of Mounting Holes
12
Specifications Size
24CB500
Specifications Weight
130 lb | 63 kg
