The Industrial Grade Single Flange CB Elements in Size 18CB500 are engineered to deliver exceptional performance in heavy-duty applications. With a Torque Rating of 44000 lb·in and a Maximum Speed of 1400 rpm, these elements ensure reliable operation under high stress. Featuring a robust construction, including a durable friction lining and precise dimensions, they offer longevity and efficiency. This product is compliant with Federal/DoD procurement standards, FAR compliance factors, and industry-specific certifications, making it ideal for institutional buyers.
Product Specifications
Note 0
Refers to basic part number only. When ordering, the number of air inlets and type of connection must be specified.
Specifications Air Inlet Thread
3/8-18
Specifications Air Tube Cavity
160 in³ | 2.62 dm³
Specifications Angle Q
15.000 º
Specifications Bolt Hole Size L
0.500 in | 13 mm
Specifications Centrifugal Loss Constant Cs
1.59 E-06 bar/rpm2 | 23 E-06 psi/rpm2

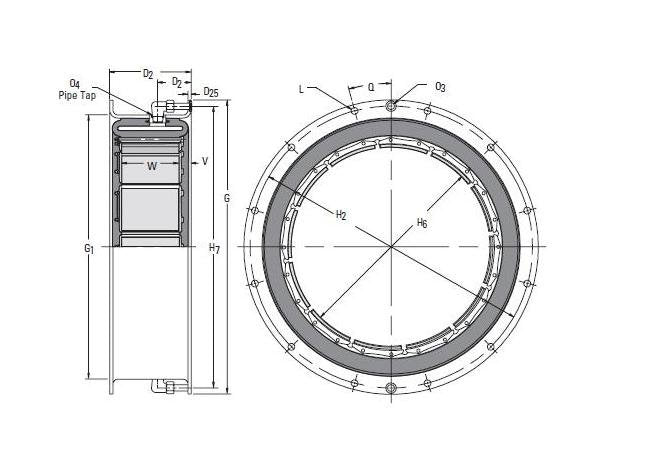

Specifications Dimension D2
6.63 in | 168 mm
Specifications Dimension D24
2.50 in | 64 mm
Specifications Dimension D25
0.19 in | 5 mm
Specifications Dimension G
25.500 in | 647.7 mm
Specifications Dimension G1
22.75 in | 578 mm
Specifications Dimension H2
24.375 in | 619.1 mm
Specifications Dimension H6
18.19 in | 462 mm
Specifications Dimension H7
24.38 in | 619 mm
Specifications Dimension O3
0.38 in | 10 mm
Specifications Dimension V
0.81 in | 21 mm
Specifications Friction Area
262 in² | 1690 cm²
Specifications Friction Shoe Width W
5.00 in | 127 mm
Specifications Inertia
70 lb·ft² | 2.94 kg·m²
Specifications Maximum Speed
1400 rpm
Specifications Minimum Drum Diameter
17.87 in | 454 mm
Specifications New Friction Lining Thickness
0.26 in | 7 mm
Specifications Number Of Friction Shoes
11
Specifications Number Of Mounting Holes
12
Specifications Size
18CB500
Specifications Torque Rating 75 Psi55 Bar
44000 lb·in | 4970 Nm
Specifications Weight
81 lb | 37 kg
Specifications Worn Friction Lining Thickness
0.06 in | 2 mm
