Industrial Grade Single Vertical Sheave Assembly
Industrial Grade Single Vertical Sheave Assembly
SKU:RIG-7e0839
Heavy-duty Single Vertical Sheave Assembly for lifting and pulling tasks, designed for durability and performance.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Industrial Grade Single Vertical Sheave Assembly
$899.99
Quantity: 1
Claim Your Seller Account
Industrial Grade Single Vertical Sheave Assembly
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Industrial Grade Single Vertical Sheave Assembly, model SVS, is designed for heavy-duty applications, with a capacity of 15000 lbs. It features a 3/4 inches wire rope diameter and precise dimensions for optimal performance. This assembly is versatile, suitable for electrical brake requirements, lifting, and pulling tasks. With options for lever drum or magnetic remote pushbutton controls and multiple mounting orientations, it offers flexibility and efficiency in operation. Built to meet stringent industry standards, this assembly ensures reliability and durability even in the most demanding environments.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Capacity
15000 lbs.
Specifications Controls
Lever Drum Mounted at Winch | Magnetic Remote Pushbutton

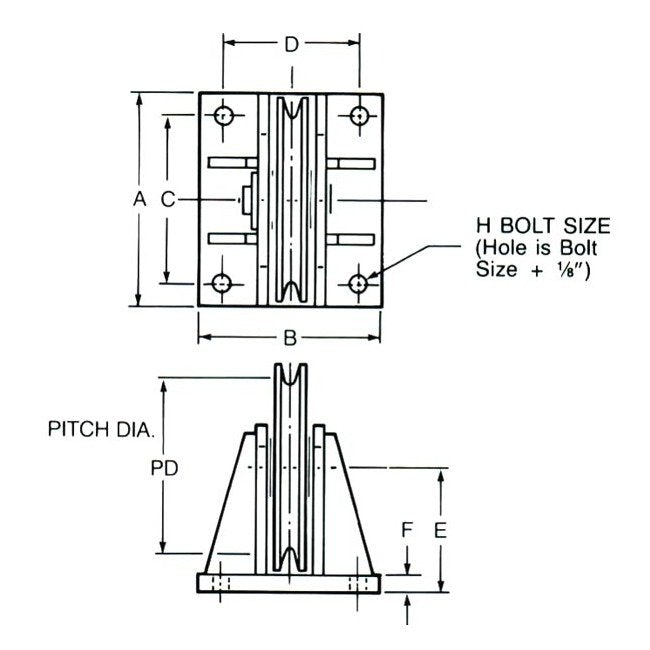

Specifications Dimension A
16 1/2 inches
Specifications Dimension B
13 inches
Specifications Dimension C
13 inches
Specifications Dimension D
9 inches
Specifications Dimension E
9 3/4 inches
Specifications Dimension F
1 1/4 inches
Specifications Dimension H
1 1/4 inches
Specifications Model
SVS
Specifications Mounting
Horizontal Base | Inverted Ceiling | Vertical
Specifications Pitch Diameter
15 inches
Specifications Winch Will Be Used For
Electrical Brake Required | Lifting | Pulling
Specifications Wire Rope Diameter
3/4 inches
