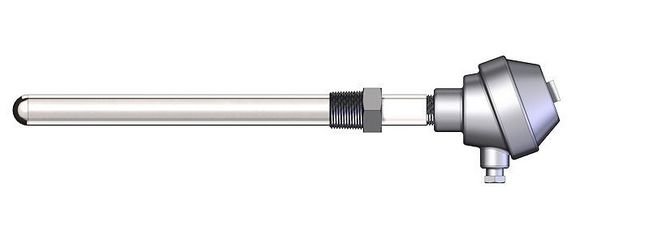

Acrolab delivers high-quality straight metal protection tube thermocouple assemblies suitable for medium to high-temperature industrial applications. Designed to withstand corrosive environments, these assemblies offer various pipe diameters, junction styles, and wire gauge options for precise temperature monitoring. With customizable features like different mounting options and calibration types (J, K, N), Acrolab's thermocouple assemblies ensure accurate temperature measurements in diverse industrial settings.
Product Specifications
Schedule 40 Pipe Alloy And Size
Code - 5-50Material - 446 Stainless SteelInside Diameter - 0.622 in.Outside Diameter - 0.840 in.Thread Size - 1/2 in.Thread Type- National Pipe Thread (NPT)Code - 5-75Material - 446 Stainless SteelInside Diameter - 0.824 in.Outside Diameter - 1.050 in.Thread Size - 3/4 in.Thread Type- National Pipe Thread (NPT)Code - 6-25Material - Carbon SteelInside Diameter - 0.364 in.Outside Diameter - 0.540 in.Thread Size - 1/2 in.Thread Type- National Pipe Thread (NPT)Code - 6-50Material - Carbon SteelInside Diameter - 0.622 in.Outside Diameter - 0.840 in.Thread Size - 1/2 in.Thread Type- National Pipe Thread (NPT)Code - 6-75Material - Carbon SteelInside Diameter - 0.824 in.Outside Diameter - 1.050 in.Thread Size - 3/4 in.Thread Type- National Pipe Thread (NPT)Code - 6-100Material - Carbon SteelInside Diameter - 1.049 in.Outside Diameter - 1.315 in.Thread Size - 1 in.Thread Type- National Pipe Thread (NPT)Code - 7-50Material - Inconel 601Inside Diameter - 0.622 in.Outside Diameter - 0.840 in.Thread Size - 1/2 in.Thread Type- National Pipe Thread (NPT)Code - 7-75Material - Inconel 601Inside Diameter - 0.824 in.Outside Diameter - 1.050 in.Thread Size - 3/4 in.Thread Type- National Pipe Thread (NPT)Code - 7-100Material - Inconel 601Inside Diameter - 1.049 in.Outside Diameter - 1.315 in.Thread Size - 1 in.Thread Type- National Pipe Thread (NPT)Code - 8-25Material - 316 Stainless Steel Inside Diameter - 0.364 in.Outside Diameter - 0.840 in.Thread Size - 1/2 in.Thread Type- National Pipe Thread (NPT)Code - 8-50Material - 316 Stainless Steel Inside Diameter - 0.622 in.Outside Diameter - 1.050 in.Thread Size - 1/2 in.Thread Type- National Pipe Thread (NPT)Code - 8-75Material - 316 Stainless Steel Inside Diameter - 0.824 in.Outside Diameter - 1.050 in.Thread Size - 3/4 in.Thread Type- National Pipe Thread (NPT)Code - 11-75Material - Cast IronInside Diameter - 1.049 in.Outside Diameter - 0.840 in.Thread Size - 1 in.Thread Type- National Pipe Thread (NPT)Code - 12-75Material - LT-1 Metal CeramicInside Diameter - 0.625 in.Outside Diameter - 1.625 in.Thread Size - 3/4 in.Thread Type- National Pipe Thread (NPT)Code - 13-75Material - Silicone NitrideInside Diameter - 0.625 in.Outside Diameter - 1.125 in.Thread Size - 3/4 in.Thread Type- National Pipe Thread (NPT)Code - 14-75Material - Refractory CoatedInside Diameter - 0.493 in.Outside Diameter - 1.500 in.Thread Size - 3/4 in.Thread Type- National Pipe Thread (NPT)Code - 15-75Material - HexoloyInside Diameter - 0.500 in.Outside Diameter - 0.750 in.Thread Size - 3/4 in.Thread Type- National Pipe Thread (NPT)Code - 16-75Material - VesuviusInside Diameter - 0.824 in.Outside Diameter - 2.000 in.Thread Size - 3/4 in.Thread Type- National Pipe Thread (NPT)
Specifications Calibration Type
J - Iron/Constantan | K - Chromel/Alumel | N - Nicrosil/Nisil
Specifications Junction Styles
Dual | Single
Specifications Options

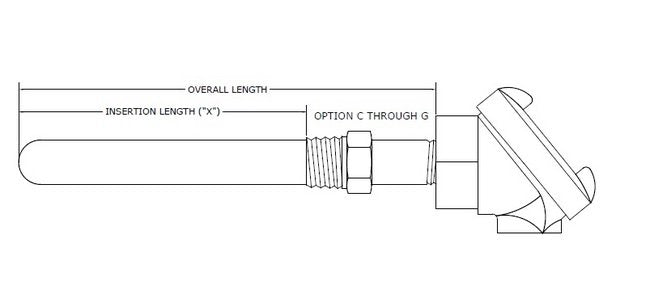

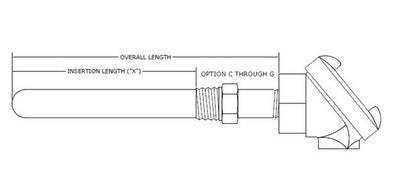

A - Open End (Closed End Standard) | AA - Special Construction | B - Internal Ground Screw in Head | C(X) - 1/2" NPT Welded Steel Bushing (0.25" Size Pipe Only) | D(X) - 3/4" NPT Welded Steel Bushing (0.50" Size Pipe Only) | E(X) - 1" NPT Welded Steel Bushing (0.50", 0.75" Size Pipe Only) | F(X) - 1-1/8" NPT Welded Steel Bushing (0.50", 0.75", 1" Size Pipe Only) | G(X) - 1-1/2" NPT Welded Steel Bushing (0.50", 0.75", 1" Size Pipe Only) | H - Adjustable Steel Flange | K - Cast Aluminum Weatherproof Head | L - Thermocouple Insulated from Tube | M - Special Limits of Error | P - Steel Union and Nipples to Connect Head to Protection Tube | SS - Stainless Steel Bushing | V - SS Union and Nipples to Connect Head to Protection Tube | W - Protective White Epoxy Coating on Head | X - CSA Approved Explosion Proof Head
Specifications Overall Pipe Length
Specify
Specifications Wire Gauge
11 - 11 Gauge ( K Only) | 14 - 14 Gauge (J, K, N Only) | 8 - 8 Gauge (J, K, N Only)
