Industrial Grade Trigon Positive Turning Blank with Hole and Counterbore, Thickness 0.224/0.228 in
Industrial Grade Trigon Positive Turning Blank with Hole and Counterbore, Thickness 0.224/0.228 in
SKU:TUR-81345f
Enhance turning precision with Industrial Grade Trigon Positive Blank, Thickness 0.224/0.228 in. Customizable grade options available.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Industrial Grade Trigon Positive Turning Blank with Hole and Counterbore, Thickness 0.224/0.228 in
$59.99
Quantity: 1
Claim Your Seller Account
Industrial Grade Trigon Positive Turning Blank with Hole and Counterbore, Thickness 0.224/0.228 in
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

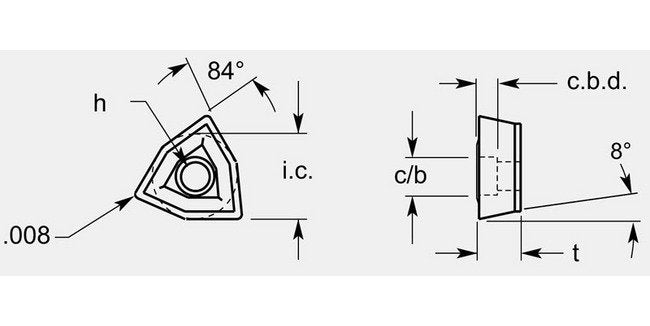

Enhance your turning projects with precision using the Industrial Grade Trigon Positive Turning Blank. Featuring a thickness of 0.224/0.228 inches, an inscribed circle of 0.605/0.611 inches, and an 84-degree angle, this blank is designed for accuracy and performance. With hole diameters of 0.193/0.199 inches and counterbore dimensions of 0.257/0.263 inches, this turning blank offers exceptional versatility. Grade availability can be customized to meet specific requirements, ensuring optimal results for your turning needs.
Product Specifications
Dimensional Specification Angle A
84 º
Dimensional Specification Cb
0.257 / 0.263 in
Dimensional Specification Cbd
0.070 / 0.076 in
Dimensional Specification Hole
0.193 / 0.199 in
Dimensional Specification Inscribed Circle Ic
0.605/0.611 in
Dimensional Specification Thickness T
0.224 / 0.228 in
Grade Availability Grade Availability
Available on Request
