Industrial Grade Utility Diamond Negative R3 Chipbreaker with Hole
Industrial Grade Utility Diamond Negative R3 Chipbreaker with Hole
SKU:TUR-349bfd
Enhance roughing operations with the Industrial Grade Utility Diamond Negative R3 Chipbreaker featuring precision design and optimal chip control.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Industrial Grade Utility Diamond Negative R3 Chipbreaker with Hole
$39.99
Quantity: 1
Claim Your Seller Account
Industrial Grade Utility Diamond Negative R3 Chipbreaker with Hole
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

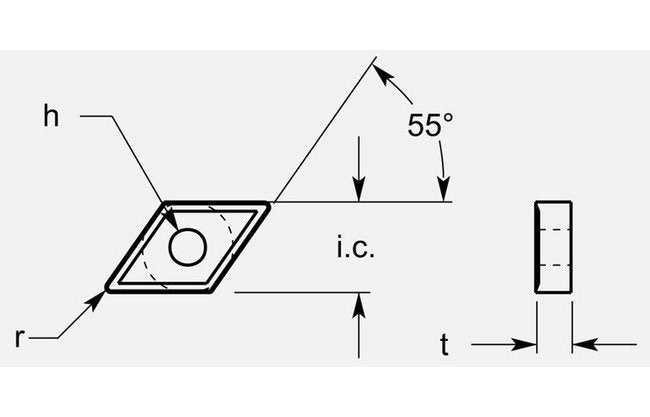

The Industrial Grade Utility Diamond Negative R3 Chipbreaker with Hole is a precision-engineered turning blank designed for superior performance in roughing operations. With a thickness of 0.254 / 0.260 inches, an inscribed circle of 0.622/0.628 inches, and a radius of 1/32 inch, this chipbreaker ensures efficient chip control and excellent cutting quality. The 55-degree angle enhances cutting efficiency, while the precisely placed hole of 0.248 / 0.253 inches further optimizes chip evacuation. Grade availability can be customized upon request, catering to diverse industrial needs.
Product Specifications
Classifications Operation
Roughing
Dimensional Specification Angle A
55 º
Dimensional Specification Hole
0.248 / 0.253 in
Dimensional Specification Inscribed Circle Ic
0.622/0.628 in
Dimensional Specification Radius R
1/32 in
Dimensional Specification Thickness T
0.254 / 0.260 in
Grade Availability Grade Availability
Available on Request
