Industrial-Grade Utility Diamond Negative with Hole, 0.202/0.207 in Thickness
Industrial-Grade Utility Diamond Negative with Hole, 0.202/0.207 in Thickness
SKU:TUR-435c90
Enhance turning operations with our precise Utility Diamond Negative with Hole, 0.202/0.207 in thickness. Customizable grade options available.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Industrial-Grade Utility Diamond Negative with Hole, 0.202/0.207 in Thickness
$29.99
Quantity: 1
Claim Your Seller Account
Industrial-Grade Utility Diamond Negative with Hole, 0.202/0.207 in Thickness
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your turning operations with our Industrial-Grade Utility Diamond Negative with Hole. Featuring precise thickness of 0.202/0.207 inches, an Inscribed Circle of 0.497/0.503 inches, and a cutting-edge design with a 35-degree angle, this turning blank ensures exceptional performance and accuracy. Grade availability is customizable to meet specific requirements, providing tailored solutions for industrial applications.

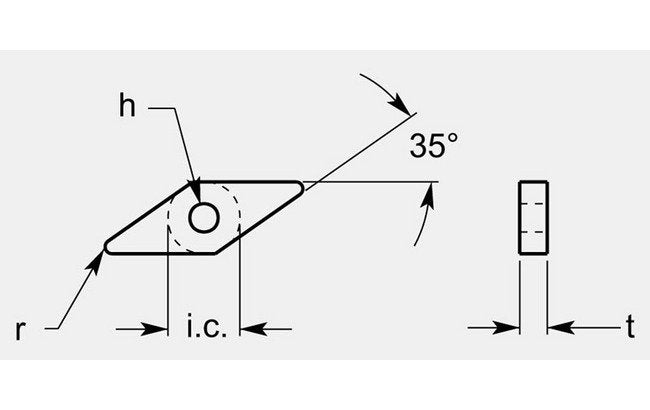

Product Specifications
Dimensional Specification Angle A
35 º
Dimensional Specification Hole
0.200 / 0.206 in
Dimensional Specification Inscribed Circle Ic
0.497/0.503 in
Dimensional Specification Radius R
1/32 in
Dimensional Specification Thickness T
0.202 / 0.207 in
Grade Availability Grade Availability
Available on Request
