Industrial Grade Utility Diamond Negative with Hole, 0.260 / 0.268 in
Industrial Grade Utility Diamond Negative with Hole, 0.260 / 0.268 in
SKU:TUR-f9db92
Precision turning blank for industrial use, with 0.260 / 0.268 in thickness and 0.200 / 0.206 in hole
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Industrial Grade Utility Diamond Negative with Hole, 0.260 / 0.268 in
$29.99
Quantity: 1
Claim Your Seller Account
Industrial Grade Utility Diamond Negative with Hole, 0.260 / 0.268 in
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Meet the demands of precision turning with our Industrial Grade Utility Diamond Negative with Hole. With a thickness of 0.260 / 0.268 inches, inscribed circle of 0.497/0.503 inches, and a 55-degree angle, this turning blank offers exceptional accuracy and performance. The included hole of 0.200 / 0.206 inches adds versatility to your machining projects. Available on request in various grades to cater to specific needs.

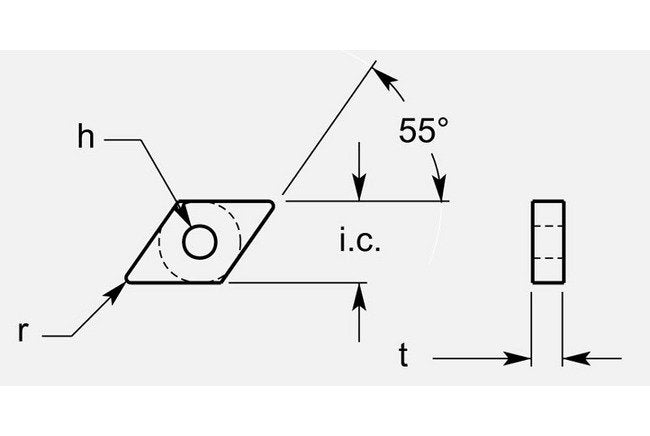

Product Specifications
Dimensional Specification Angle A
55 º
Dimensional Specification Hole
0.200 / 0.206 in
Dimensional Specification Inscribed Circle Ic
0.497/0.503 in
Dimensional Specification Radius R
3/64 in
Dimensional Specification Thickness T
0.260 / 0.268 in
Grade Availability Grade Availability
Available on Request
