Industrial Grade Utility Diamond R1 Chipbreaker with Hole
Industrial Grade Utility Diamond R1 Chipbreaker with Hole
SKU:TUR-72f6f4
Precision meets durability with our Industrial Grade Utility Diamond R1 Chipbreaker with Hole. Ideal for roughing operations and customizable grade availability.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Industrial Grade Utility Diamond R1 Chipbreaker with Hole
$29.99
Quantity: 1
Claim Your Seller Account
Industrial Grade Utility Diamond R1 Chipbreaker with Hole
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

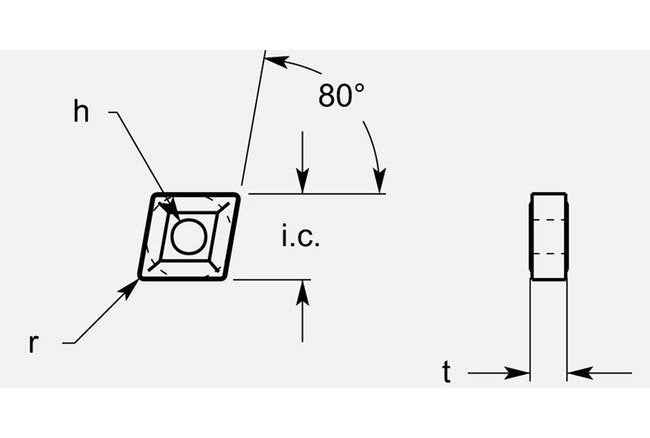

The Industrial Grade Utility Diamond R1 Chipbreaker with Hole is designed for superior performance in turning applications. With a thickness ranging from 0.191 to 0.197 inches, an inscribed circle of 0.497 to 0.503 inches, and a precise radius of 1/16 inch, this chipbreaker ensures precise cuts and enhanced durability. Operating at an 80-degree angle, it excels in roughing operations. Grade Availability can be customized based on requirements, offering tailored solutions for your turning needs.
Product Specifications
Classifications Operation
Roughing
Dimensional Specification Angle A
80 º
Dimensional Specification Hole
0.200 / 0.206 in
Dimensional Specification Inscribed Circle Ic
0.497/0.503 in
Dimensional Specification Radius R
1/16 in
Dimensional Specification Thickness T
0.191 / 0.197 in
Grade Availability Grade Availability
Available on Request
