Industrial Grade Utility Scarfing Positive with Hole and Countersink

Name: Industrial Grade Utility Scarfing Positive with Hole and Countersink
Brand: Ultra-Met
SKU: MIS-72bfe4
Price: 49.99 USD
Availability: OutOfStock

SKU:MIS-72bfe4

High-quality Industrial Grade Utility Scarfing Positive for precise machining needs in various grades. Thickness: 0.392-0.397 in. Hole: 0.258-0.268 in.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

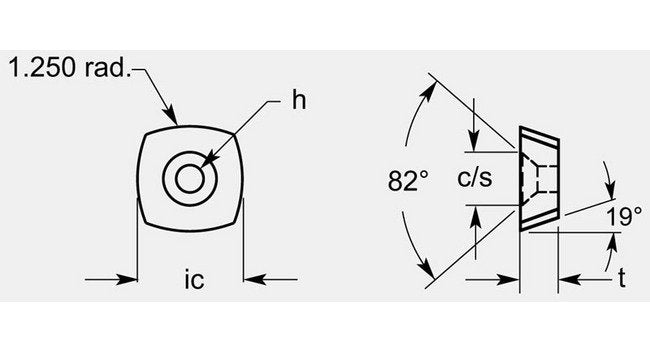

The Industrial Grade Utility Scarfing Positive with Hole and Countersink boasts a thickness ranging from 0.392 to 0.397 inches, an Inscribed Circle of 1.063/1.071 inches, and an 82-degree Angle. Featuring precision-engineered holes measuring 0.258 to 0.268 inches and a C/S dimension of 0.526 to 0.536 inches, this product ensures top-notch performance and durability. Available in various grades upon request, this scarfing blank is designed to meet the rigorous requirements of industrial applications.

Product Specifications

Dimensional Specification Angle A

82 Âº

Dimensional Specification Cs

0.526 / 0.536 in

Dimensional Specification Hole

0.258 / 0.268 in

Dimensional Specification Inscribed Circle Ic

1.063/1.071 in

Dimensional Specification Thickness T

0.392 / 0.397 in

Grade Availability Grade Availability

Available on Request

Industrial Grade Utility Scarfing Positive with Hole and Countersink
