Industrial-grade ZQ375 Checkweigher with Torsion Base
Industrial-grade ZQ375 Checkweigher with Torsion Base
SKU:CHE-6e3f06
Get precise weight verification with the ZQ375 Torsion Base Checkweigher, perfect for food industry use.
Regular price
$3,999.99
Regular price
Sale price
$3,999.99
Unit price
per
Initiate Order
Industrial-grade ZQ375 Checkweigher with Torsion Base
$3,999.99
Quantity: 1
Claim Your Seller Account
Industrial-grade ZQ375 Checkweigher with Torsion Base
$3,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

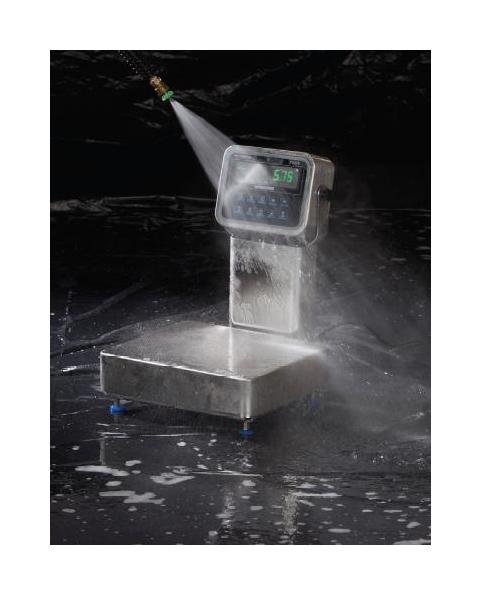

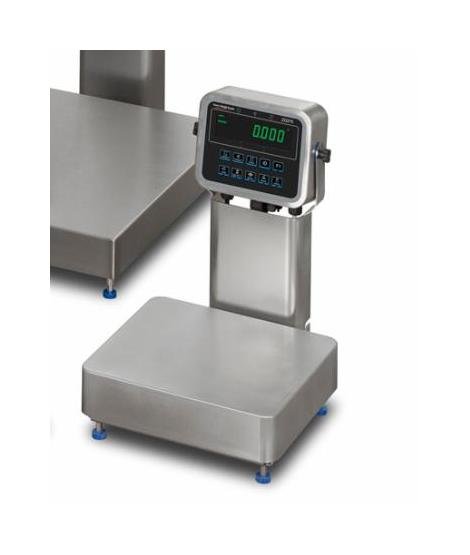

The ZQ375 Low Capacity Torsion Base Checkweigher is a high-precision industrial scale designed for reliable weight verification in food environments. With a robust NEMA 4X (IP65) torsion base and NTEP certification, this checkweigher offers exceptional accuracy and durability. Manufactured from high-grade stainless steel with an IP69K wash-down option, it meets NSF/ANSI Standard 3-A 14159-1 - 2010 for hygiene and safety. The IP69K indicator, available with various IP69K or IP65 NTEP-approved stainless steel bases, provides up to 500% overload protection, making it ideal for demanding industrial settings.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Capacity
6 lb | 2.7 kg
Specifications Model Number
AWT05-800068
Specifications Notes
USB or Ethernet gland can not be used if Wireless model & antenna are installedAll ball top shrouds are not NSF Certified for use in food applications. Due to NSF hygiene regulations all Torsion ZQ375 Checkweighers come standard with limited loadcell cable length. For taller column applications or for applications where the indicator is to be remotely mounted please use the Torsion bases part numbers from the Torsion page.
Specifications Options
[50695-0062] - Diamond base ball-top shroud, 20" x 20" stainless steel (field retrofit) | [50695-0080] - Diamond base ball-top shroud, 24" x 24" stainless steel (field retrofit) | [AWT05-505633] - USB device module | [AWT05-505634] - Current Loop and RS485/RS422 | [AWT05-505849] - Wireless (802.11b/g) modules & antenna | [AWT05-505850] - USB watertight gland | [AWT05-505851] - Ethernet watertight gland | [AWT05-506023] - DC Stack Light Assembly | [AWT05-506030] - DC Stack Light Assembly with alarm | [AWT05-506042] - Ztools PC utility program | [AWT05-508728] - Splash guard vinyl cover - sold in lots of 5. | [AWT05-800041] - External OPTO 22 relay box | [AWT05-800050] - ZQ375 indicator only (no wall/desk stand included) | [AWT05-800055] - USA IP69K pack and external rechargeable battery | [AWT05-800079] - Torsion Base Tall column (23" high) | [AWT20-505480] - ZQ375 stainless steel wall/desk stand. | [AWT25-502037] - G4ODC5 5 to 60 volt output module | [AWT25-502038] - G4ODC5A 5 to 200 DC volt output module | [AWT25-502039] - G4OAC5 12 to 140 AC volt output module | [AWT25-502040] - G4OAC5A 24 to 280 AC volt output module | [AWT25-502041] - G4OAC5A5 (NC) 24 to 280 AC volt output module | [AWT25-502042] - G4ODC5R .5 amp, SPST normally open dry contact relay | [AWT25-502043] - G4ODC5R5 .5 amp, SPST normally closed dry contact relay | [AWT77-501608] - ZM & ZQ indicator to QC3265 column conversion bracket kit
Specifications Platform Height
3 in
Specifications Platform Length
8.75 in
Specifications Platform Width
8.75 in
Specifications Shipping Weight
26 lb | 11.8 kg
