Industrial Heavy Duty Crane End Trucks - Push Type
Industrial Heavy Duty Crane End Trucks - Push Type
Enhance your crane system with reliable Industrial Heavy Duty End Trucks, designed for safety and precision. Compliant with Federal standards.
Regular price
$1,899.99
Regular price
Sale price
$1,899.99
Unit price
per
Initiate Order
Industrial Heavy Duty Crane End Trucks - Push Type
$1,899.99
Quantity: 1
Claim Your Seller Account
Industrial Heavy Duty Crane End Trucks - Push Type
$1,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

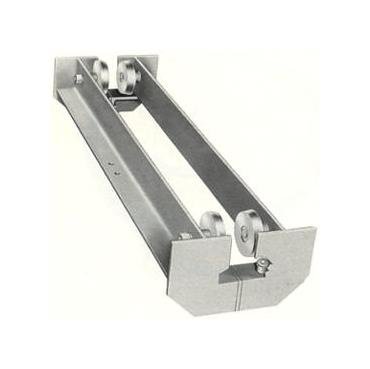

Upgrade your overhead crane system with our Industrial Heavy Duty Crane End Trucks. Designed for reliability and safety, these end trucks feature solid high carbon steel wheels, heavy-duty side rollers, and heavy structural steel frames ensuring true alignment and rigidity. With a maximum capacity of 2 tons and compliance with industry standards, including Federal procurement and DLA requirements, these end trucks are ideal for large 'S' beams and 'W' beam runway rails.
Product Specifications

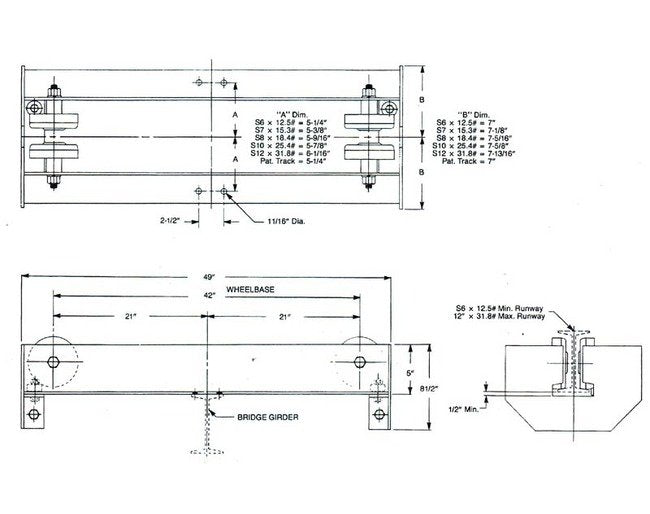

Specifications Adjustable For Standard Beam Sizes
S6 to S12 x 31.8#
Specifications Capacity
2 Tons
Specifications Crane Wheel Diameter
5 inches
Specifications Max Wheel Load Per Pair
2900 lbs.
Specifications Model
Model USP
Specifications Net Weight Per Pair
275 lbs.
Specifications Wheel Base
3'-6"
Standard Features 0
Wheels : Solid high carbon steel wheels running on sealed precision ball bearings.Side Rollers : Heavy duty precision side roller bearing guidance insures long life of wheels and runway rails and will not allow crane to skew or bind under any loading or operating conditions. Truck Frames : End truck frames are fabricated from heavy structural steel angles jig welded and precision bored to insure true alignment. Heavy structural front plates are provided for independent truck rigidity and positive tracking. Safety lugs are included as standard equipment for maximum protection. Split truck design allows quick easy erection on all open or closed runway systems.
