Industrial In-Line E-Vac High Vacuum Generator - Model 810031
Industrial In-Line E-Vac High Vacuum Generator - Model 810031
SKU:INL-efb4df
Precision In-Line E-Vac High Vacuum Generator for non-porous materials, 27' Hg vacuum units, 15.8 SCFM flow, durable aluminum construction
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Industrial In-Line E-Vac High Vacuum Generator - Model 810031
$349.99
Quantity: 1
Claim Your Seller Account
Industrial In-Line E-Vac High Vacuum Generator - Model 810031
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

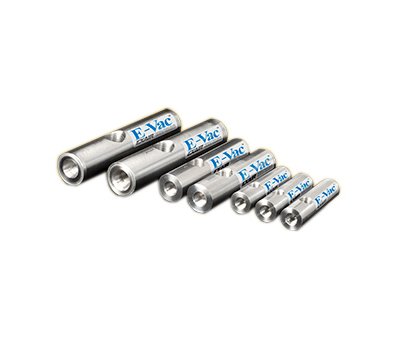

The Industrial In-Line E-Vac High Vacuum Generator model 810031 is a top-of-the-line solution for vacuum applications on non-porous materials like glass, steel, and plastic. With high vacuum units up to 27' Hg and vacuum flows up to 15.8 SCFM, this generator offers precision and reliability. Its 18 models feature a durable 6061 aluminum construction, fast response time, and easy mounting at the point of use. Enjoy whisper-quiet operation, no electricity requirement, and no maintenance hassle due to its single-stage design. Ideal for various applications like bag opening, label placement, robotic tooling, and more.
Product Specifications
Specifications Advantages
18 Models | Compact, Portable | Durable 6061 Aluminum Construction | Easy to Mount at Point of Use | Fast Response - Increases Cycle Time | Instantaneous Vacuum | Lightweight, Rugged | No Moving Parts - No Maintenance | Quiet | Safe Operation - No Electricity | Single Stage Design Eliminates Fluctuations in Vacuum
Specifications Air Consumption
30.8 SCFM | 872.1 SLPM
Specifications Air Inlet
1/2 NPT
Specifications Applications
Bag/Package Opening | Carton Forming | Clamping and Chucking | Evacuate Containers | Label Placement | Leak Testing | Mold Evacuation | Paper Alignment and Feed in Printing Equipment | Pick and Place Parts and Equipment | Robotic Tooling | Surface Mounting | Vacuum Filling | Vacuum Forming | Vacuum Liquids for Testing | Vacuum Packaging | Vacuum Press for Wood Veneers and Laminates
Specifications Dimension F
1.88 in | 48 mm
Specifications Exhaust Port H
1/2 NPT
Specifications Length
6 in | 152 mm
Specifications Pressure
80 psig | 5.5 bar
Specifications Sound Level
105 dBA
Specifications Vacuum Flow At 0 Vacuum Level In Hg Kpa
30.8 SCFM | 872 SLPM
Specifications Vacuum Flow At 1241 Vacuum Level In Hg Kpa
10.25 SCFM | 290.2 SLPM
Specifications Vacuum Flow At 1551 Vacuum Level In Hg Kpa
7.97 SCFM | 225.7 SLPM
Specifications Vacuum Flow At 1861 Vacuum Level In Hg Kpa
5.98 SCFM | 169.3 SLPM
Specifications Vacuum Flow At 2171 Vacuum Level In Hg Kpa
5.04 SCFM | 142.7 SLPM
Specifications Vacuum Flow At 2481 Vacuum Level In Hg Kpa
3.41 SCFM | 96.6 SLPM
Specifications Vacuum Flow At 2791 Vacuum Level In Hg Kpa
0.00 SCFM | 0.0 SLPM
Specifications Vacuum Flow At 310 Vacuum Level In Hg Kpa
15.25 SCFM | 431.8 SLPM
Specifications Vacuum Flow At 620 Vacuum Level In Hg Kpa
12.67 SCFM | 358.8 SLPM
Specifications Vacuum Flow At 931 Vacuum Level In Hg Kpa
11.12 SCFM | 314.9 SLPM
Specifications Vacuum Flow At Maximum Vacuum
27 SCFM | 91 SLPM
Specifications Vacuum Inlet
1/2 NPT
Specifications Width
1.25 in | 32 mm
