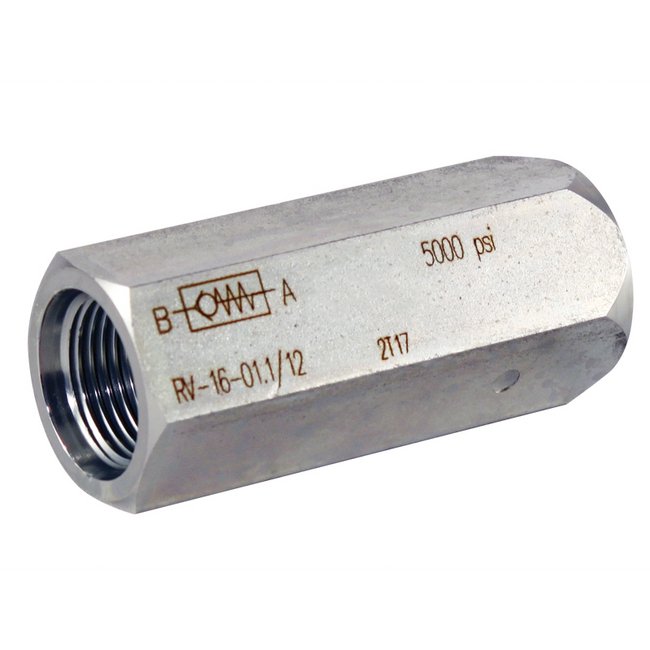

The Industrial Inline Check Valves are essential for precise flow control applications, featuring a robust carbon steel housing with NPTF - ANSI/ASME 1.20.3 Taper Pipe Thread port configuration. These valves offer a metal to metal seal design for poppet, ensuring reliability and durability in fluid systems. With a maximum operating pressure of 5000 psi and compliance with American National Standards Institute (ANSI)/American Society of Mechanical Engineers (ASME) standards, these valves are ideal for industrial and government procurement needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

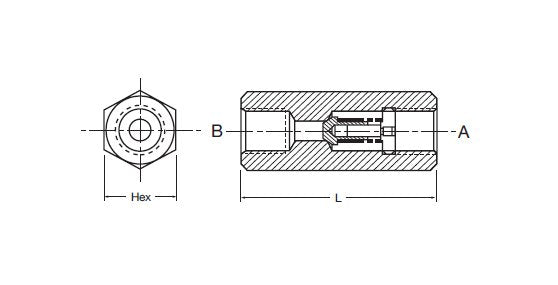

Dimensions Dimension L
5 in | 127 mm
Dimensions Hex Size
1 13/16 in | 46 mm
Features 0
9 Sizes, 1/8" - 2"NPT or SAE O-Ring connections and manifold mountingMetal to metal seal design for poppetHardened and ground steel poppet
Note 0

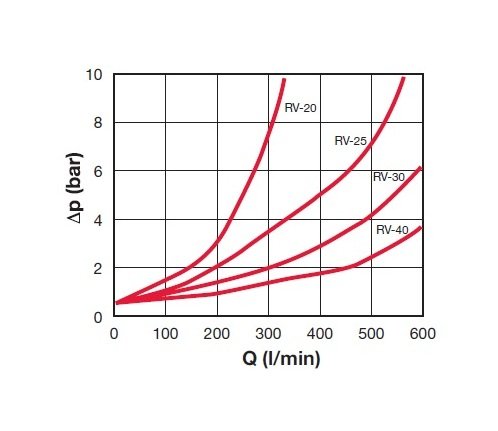

Not recommended for high-cycle applications!Pressure Drop curves were established by using mineral oil with kinematic viscosity 335 SUS at 86 ºF / 30 ºC.Dimensions are for general information only, all critical dimensions should be verified by requesting a certified print.
Specifications Bun
EA
Specifications Cracking Pressure
1.7 bar | 25 psi
Specifications Division
ACCESSORIES
Specifications End Size
1 in.
Specifications End Type
NPT
Specifications Flow
150 gpm
Specifications Housing Material
Carbon Steel
Specifications Industry Standardscertifications
American National Standards Institute (ANSI)/American Society of Mechanical Engineers (ASME)
Specifications Kinematic Viscosity At 86f30c
335 SUS
Specifications Maximum Temperature At Full Pressure
212 ºF
Specifications Minimum Temperature At Full Pressure
-4 ºF
Specifications Model Code Description
RV-20-01.X/5- 25
Specifications Mounting Type
Inline Mounting
Specifications Nominal Sizes
20
Specifications Operating Pressure Max
345 bar | 5000 psi
Specifications Port Configuration
NPTF - ANSI/ASME 1.20.3 Taper Pipe Thread
Specifications Product
FLOW CONTROL VALVES
Specifications Product Group Family
FLOW CONTROL VALVES
Specifications Second End Size
1 in.
Specifications Second End Type
NPT
Specifications Type
Flow Control Valve
Specifications Weight
0.1 kg | 0.22 lb
