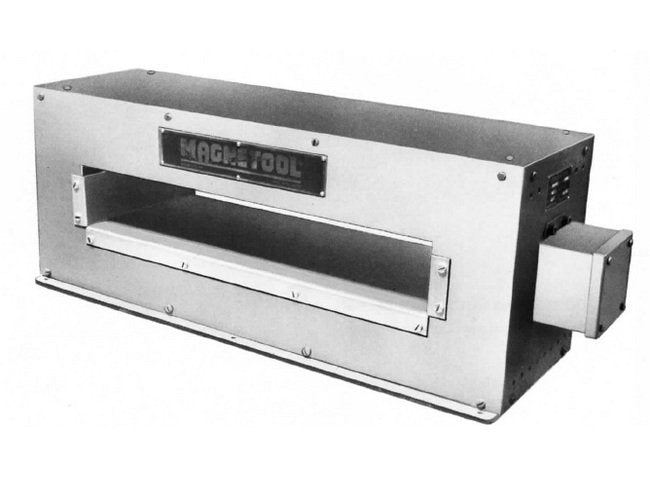

Industrial Large Loop-Type Demagnetizer
Industrial Large Loop-Type Demagnetizer
SKU:LAR-13dd3a
Efficiently demagnetize large workpieces with the Industrial Large Loop-Type Demagnetizer. Continuous duty, NEMA 12 enclosure, and premium materials.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Industrial Large Loop-Type Demagnetizer
$2,899.99
Quantity: 1
Claim Your Seller Account
Industrial Large Loop-Type Demagnetizer
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Industrial Large Loop-Type Demagnetizer is designed for continuous duty with a 100% duty cycle, featuring an 18x36-inch opening to accommodate large workpieces. Constructed with NEMA 12 enclosure standards, this demagnetizer ensures optimal performance. It is crafted from magnetic steel and non-magnetic materials like stainless steel, aluminum, and brass. Additional safety features include special demagnetizer controls and fused disconnect switch for protection.
Product Specifications
Additional Information 0
Another method is to place a Surface Type Demagnetizer under the belt and if necessary, another unit suspended over the belt so the work passes between the two Demagnetizers. These Demagnetizers should be placed on a non-metallic surface to reduce the heating caused by induction.A fused disconnect switch should be inserted in the AC supply line for protection. Special demagnetizer controls can be furnished with a NEMA 12 enclosure, push buttons, pilot lamp, ammeter, voltmeter, foot pedal, and automatic timers. An alternative is to have only the belt pass through the demagnetizer.
Manufacturing Notes 0
CAUTION: Demagnetizers should not be used near sensitive electronic equipment. Special standards are available.
Specifications Current For Single Phase Voltage 230 Vac
160 A
Specifications Current For Single Phase Voltage 460 Vac
80 A
Specifications Duty Percentage
100 %
Specifications Duty Type
Continuous
Specifications Material
Magnetic Steel | Non-Magnetic Stainless Steel, Aluminum, Brass.
Specifications Net Weight
950 lb
Specifications Opening Height
18 in
Specifications Opening Width
36 in
Specifications Overall Depth
19 in
Specifications Overall Height
34 in
Specifications Overall Width
54 in
Specifications Standards
NEMA 12 Enclosure
