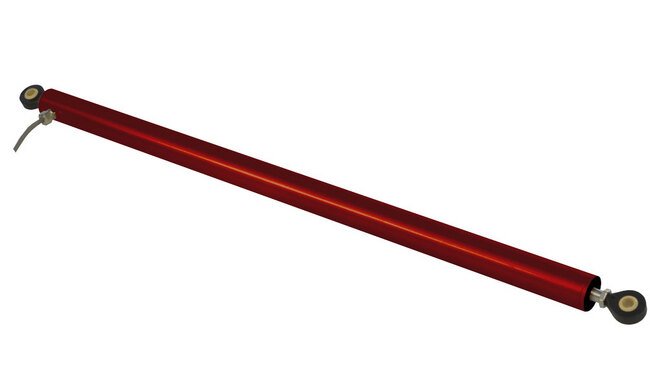

Industrial Linear Potentiometer Sensor - 27mm OD, 18in Stroke, 0-10V DC Output
Industrial Linear Potentiometer Sensor - 27mm OD, 18in Stroke, 0-10V DC Output
SKU:LIN-41ec7c
Enhanced durability and precision! 27mm OD, 18in stroke linear potentiometer with 0-10V DC output.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Industrial Linear Potentiometer Sensor - 27mm OD, 18in Stroke, 0-10V DC Output
$69.99
Quantity: 1
Claim Your Seller Account
Industrial Linear Potentiometer Sensor - 27mm OD, 18in Stroke, 0-10V DC Output
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unmatched precision with our 27mm OD, 18in stroke linear potentiometer replacement sensor. Crafted with an aluminum body, it ensures durability in harsh conditions. With a voltage output of 0-10V DC, this sensor offers exceptional linearity (<0.25%) and a high-resolution rate (0.025% of full scale), meeting stringent industry standards. Approved for European Conformity (CE), it guarantees reliable performance in a temperature range of -40 to 105°C.
Product Specifications
Technical Specs Brands
Alliance Sensors Group
Technical Specs Cable Type
Radial
Technical Specs European Conformity Ce Approved
Yes
Technical Specs Linearity
<0.25 % of Full Scale
Technical Specs Material
Aluminum Body
Technical Specs Output Direct Current Dc Voltage
0 to 10 V
Technical Specs Outside Diameter
27 mm
Technical Specs Range
18 in
Technical Specs Resolution
0.025 % of Full Scale
Technical Specs Stroke
18 in
Technical Specs Temperature Range
-40 to 105 ºC
Technical Specs Termination
1 m Cable
Technical Specs Type
Rod Ends
Technical Specs Update Rate
300 Hz
