Industrial Magnetool Fluid Line Filter
Industrial Magnetool Fluid Line Filter
SKU:FLU-40520d
Prevent tool damage with Industrial Magnetool Fluid Line Filter. Durable, low maintenance design for efficient machining operations.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Industrial Magnetool Fluid Line Filter
$89.99
Quantity: 1
Claim Your Seller Account
Industrial Magnetool Fluid Line Filter
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

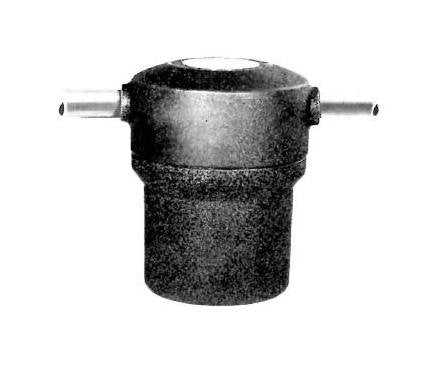

The Industrial Magnetool Fluid Line Filter is a critical component for reducing tool and workpiece damage caused by ferrous metal chips in coolant systems during machining operations. Designed for durability and efficiency, this filter is equipped with Magnetool permanent magnet technology to trap harmful particles, preventing their flow back into the reservoir. With a robust stainless steel construction, including cleaning sleeve assembly and tubes enclosing the magnets, this filter offers long-lasting performance with minimal maintenance requirements. Enhance your operational uptime, minimize tool breakage, and extend tool reconditioning intervals with this reliable fluid line filter.
Product Specifications
Additional Information 0
Alnico magnet material is standard. Neodymium magnet material is available for fine tramp iron (less than 35 microns) and weakly magnetic contamination.
Manufacturing Notes 0
Standard Pipe Thread Size: Use reducers for other pipe sizes
Specifications Applications

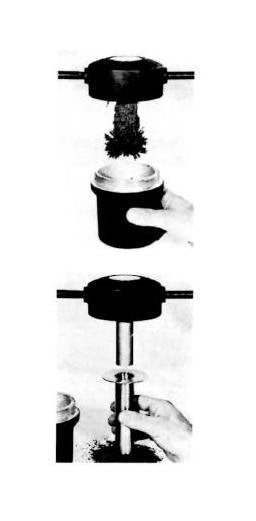

Trap the iron that damages your tools. | To clean, remove outer case, exposing cleaning sleeve. | Slide cleaning sleeve assembly down until clear of magnets. Trapped parts fall off.
Specifications Capacity
1 gpm | 2 1/2 gpm | 5 gpm
Specifications Housing Material
Aluminum
Specifications Magnet Material
Alnico
Specifications Maximum Pressure
200 psi
Specifications Net Weight
4.5 lb
Specifications Pipe Size
1/4 in | 3/8 in | 1/2 in
Specifications Standard Pipe Thread Size
1/2 in NPT
